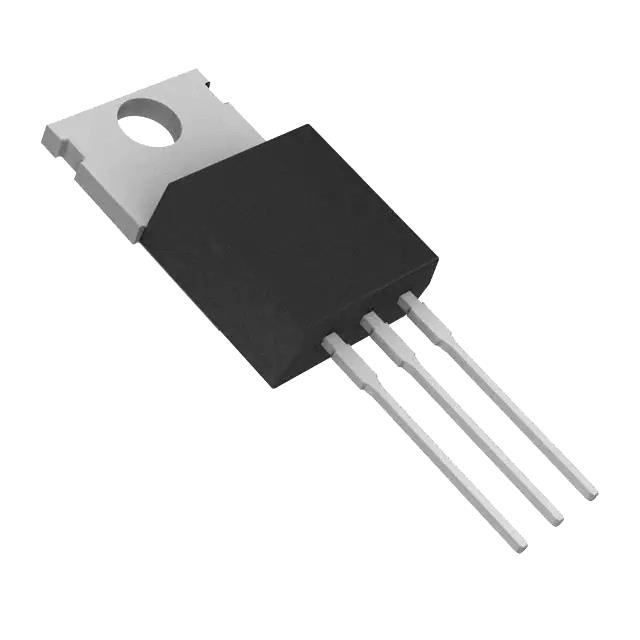

Linear Voltage Regulator IC Negative Fixed 1 Output 1A MP-45G
UPC7915AHF-AZ
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Renesas |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Negative |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -30V |
| Voltage - Output (Min/Fixed) | -15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6.2 mA |
| PSRR | 54dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | MP-45G |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UPC7915AHF-1-AZ | UPC1093J-T-A | UPC2406AHF-AZ | UPC2408AHF-AZ |
| Manufacturer | Renesas | NEC Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | RoHS non-compliant | Not applicable | ROHS3 Compliant | ROHS3 Compliant |
| Description | UPC7915A - THREE TERMINAL NEGATI | IC REG LINEAR ADJ SHUNT REG | IC REG LINEAR FIXED LDO REG | IC REG LINEAR FIXED LDO REG |
| Series | Renesas | NEC Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Bulk | Bulk | Bulk | Bulk |
