UPD78F0515AGA-GAM-E1-AX

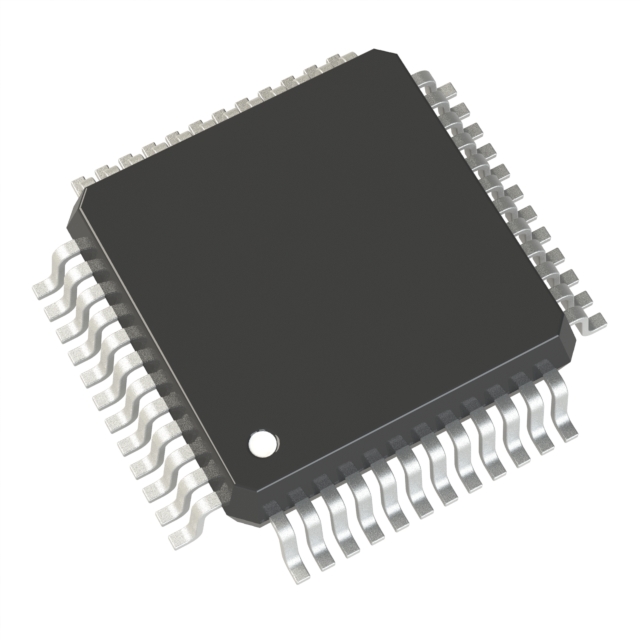

lmages are for reference only.UPD78F0515AGA-GAM-E1-AX
IC MCU 8BIT 60KB FLASH 48LQFP
Datasheet48-LQFP
62,762 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
78K/0 78K0/Kx2 Microcontroller IC 8-Bit 20MHz 60KB (60K x 8) FLASH 48-LFQFP (7x7)
UPD78F0515AGA-GAM-E1-AX
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Series | 78K0/Kx2 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I2C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 41 |
| Program Memory Size | 60KB (60K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 3K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LFQFP (7x7) |
| Package / Case | 48-LQFP |
| Base Product Number | UPD780515 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
-GAM-AX.jpg "UPD78F0515AGA(R)-GAM-AX") |
-GAM-E1-AX.jpg "UPD78F0515AGA(R)-GAM-E1-AX") |
| Part Number | UPD78F0515AGA-GAM-AX | UPD78F0515AGA(A)-GAM-AX | UPD78F0515AGA(R)-GAM-AX | UPD78F0515AGA(R)-GAM-E1-AX |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC MCU 8BIT 60KB FLASH 48LQFP | IC MCU 8BIT 60KB FLASH 48LQFP | IC MCU 8BIT 60KB FLASH 48LQFP | IC MCU 8BIT 60KB FLASH 48LQFP |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Tray | Bulk | Tray | Tray |
Recommended Products

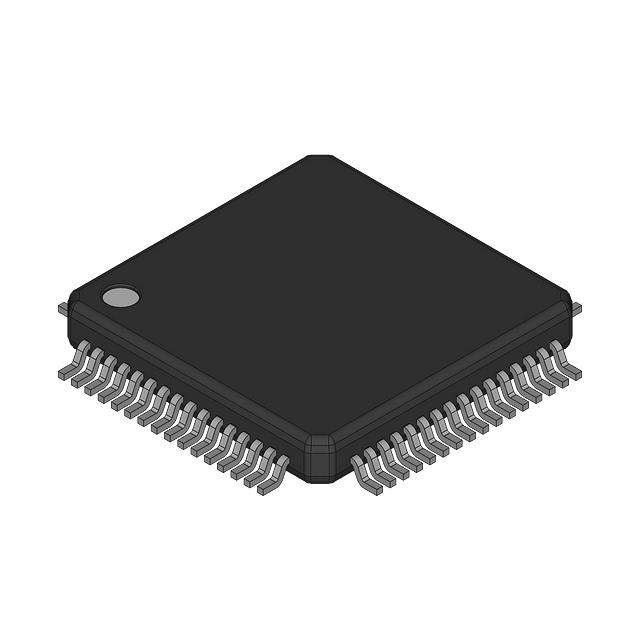

-8EU.jpg "UPD78F0138M2GB(A1)-8EU")
