UPD78F1142AGB(S)-GAH-AX

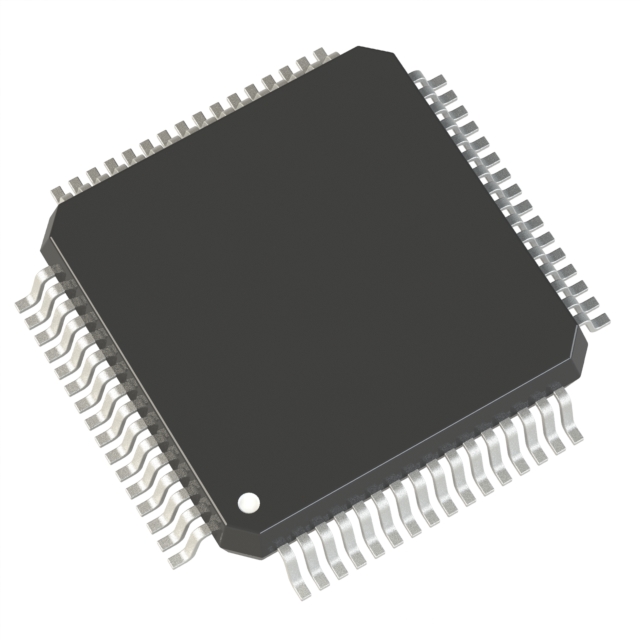

lmages are for reference only.UPD78F1142AGB(S)-GAH-AX
IC MCU 16BIT 64KB FLASH 64LQFP
Datasheet64-LQFP
16,602 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
78K/0R 78K0R/Kx3 Microcontroller IC 16-Bit 20MHz 64KB (64K x 8) FLASH 64-LFQFP (10x10)
UPD78F1142AGB(S)-GAH-AX
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Series | 78K0R/Kx3 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | 78K/0R |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, EBI/EMI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 55 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LFQFP (10x10) |
| Package / Case | 64-LQFP |
| Base Product Number | UPD781142 |
| Grade | - |
| Qualification | - |
| Product Attribute | -GAH-M1-AX.jpg "UPD78F1142AGB(S)-GAH-M1-AX") |
-GAH-AX.jpg "UPD78F1142AGB(R)-GAH-AX") |
 |
 |
| Part Number | UPD78F1142AGB(S)-GAH-M1-AX | UPD78F1142AGB(R)-GAH-AX | UPD78F1142AGB-GAH-AX | UPD78F1142AGB-GAH-M1-AX |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 16BIT 64KB FLASH 64LQFP | IC MCU 16BIT 64KB FLASH 64LQFP | IC MCU 16BIT 64KB FLASH 64LQFP | IC MCU 16BIT 64KB FLASH 64LQFP |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Tray | Tray | Tray | Tray |
