Product CatalogPart Number
UPJ1H2R2MDD1TA
Manufacturer
NichiconDescription
CAP ALUM 2.2UF 20% 50V RADIAL TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
85,584 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UPJ1H2R2MDD1TA
UPJ1H2R2MDD1TA

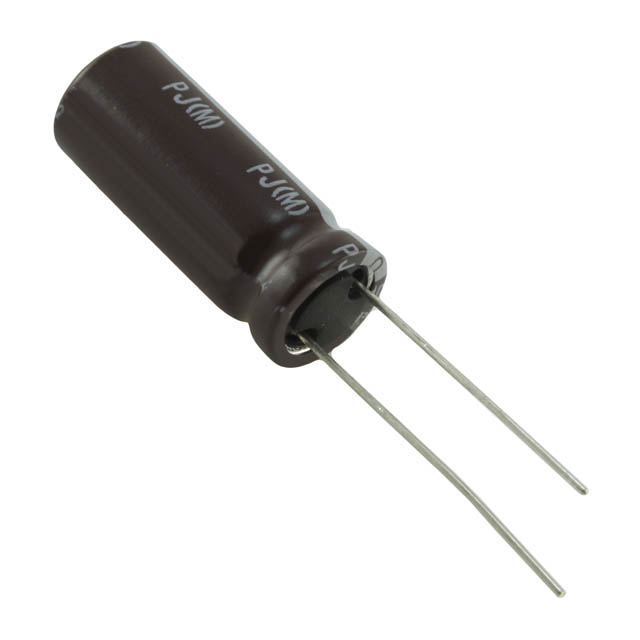

lmages are for reference only.Payment Methods
Delivery Services
2.2 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Quick Inquiry
UPJ1H2R2MDD1TA
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | UPJ |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 54 mA @ 10 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 6.5 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UPJ1H2R2MDD | UPJ1H2R2MDD1TD | UPJ1A101MED | UPJ1A101MED1TA |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 2.2UF 20% 50V RADIAL TH | CAP ALUM 2.2UF 20% 50V RADIAL TH | CAP ALUM 100UF 20% 10V RADIAL TH | CAP ALUM 100UF 20% 10V RADIAL TH |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Tape & Box (TB) |
