Product CatalogPart Number
UPM0J561MPD6TD
Manufacturer
NichiconDescription
CAP ALUM 560UF 20% 6.3V RADIAL
Datasheet
DatasheetPackage
Radial, Can
In Stock
16,058 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UPM0J561MPD6TD
UPM0J561MPD6TD
lmages are for reference only.Payment Methods
Delivery Services
560 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Quick Inquiry
UPM0J561MPD6TD
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | UPM |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 545 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 10 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 130 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UPM0J561MPD | UPM0J561MPD1TA | UPM0J561MPD1TD | UPM0J561MPD6 |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 560UF 20% 6.3V RADIAL | CAP ALUM 560UF 20% 6.3V RADIAL | CAP ALUM 560UF 20% 6.3V RADIAL | CAP ALUM 560UF 20% 6.3V RADIAL |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Bulk |
Customers Also Interested in
Recommended Products
UPM0J101MDD
Nichicon

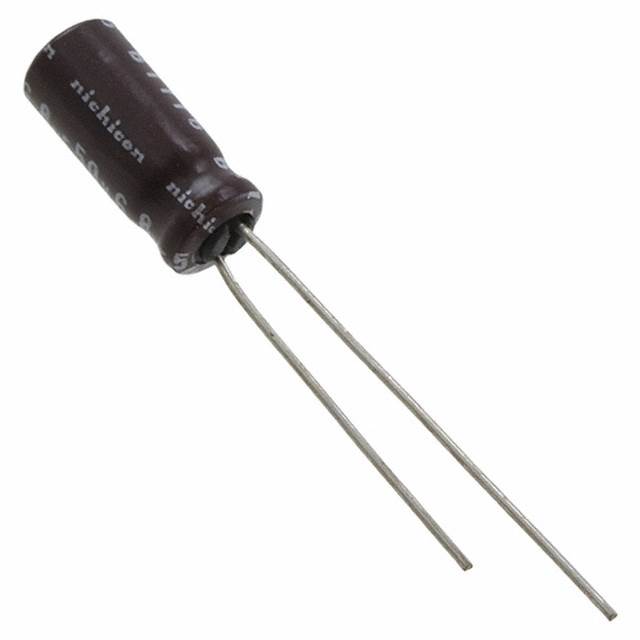

UPM0J101MDD1TD
Nichicon
UPM0J102MHD6
Nichicon
UPM0J102MHD6TO
Nichicon
UPM0J102MPD
Nichicon
UPM0J102MPD1TD
Nichicon
UPM0J103MHD
Nichicon
UPM0J103MHD6
Nichicon
UPM0J121MDD1TD
Nichicon
UPM0J122MHD6
Nichicon
UPM0J122MHD6TO
Nichicon
UPM0J122MPD
Nichicon
UPM0J122MPD1TD
Nichicon
UPM0J123MHD
Nichicon
UPM0J151MED1TD
Nichicon

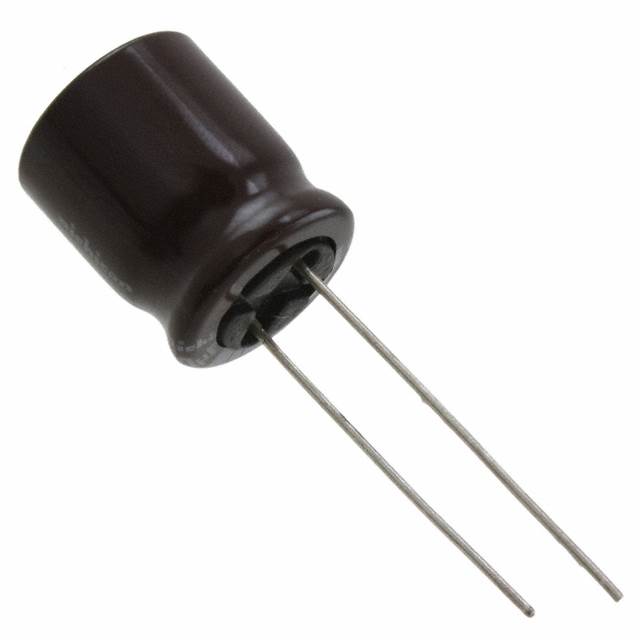

UPM0J152MHD6
