Product CatalogPart Number
UPM1K220MED
Manufacturer
NichiconDescription
CAP ALUM 22UF 20% 80V RADIAL TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
63,126 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UPM1K220MED
UPM1K220MED
lmages are for reference only.Payment Methods
Delivery Services
22 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Quick Inquiry
UPM1K220MED
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | UPM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 10 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 770 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

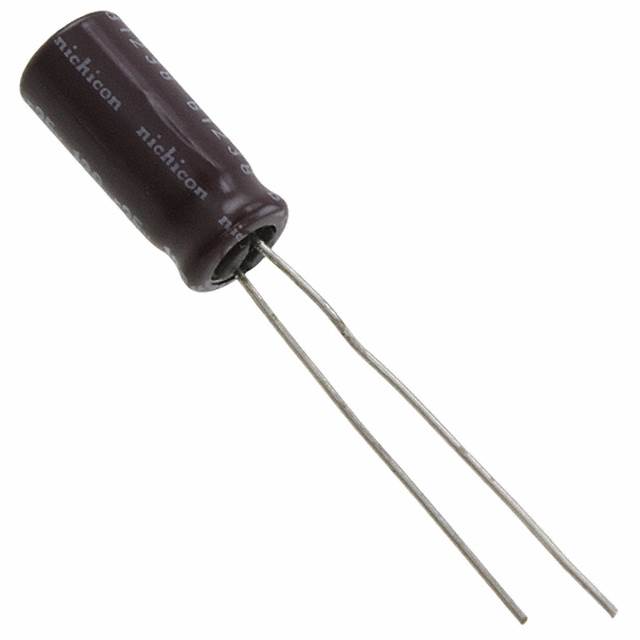

| Part Number | UPM1K220MED1TD | UPM1K100MED | UPM1K100MED1TD | UPM1K101MHD6 |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 22UF 20% 80V RADIAL TH | CAP ALUM 10UF 20% 80V RADIAL TH | CAP ALUM 10UF 20% 80V RADIAL TH | CAP ALUM 100UF 20% 80V RADIAL TH |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk |
Customers Also Interested in
Recommended Products
UPM1K100MED
Nichicon
UPM1K100MED1TD
Nichicon
UPM1K101MHD6
Nichicon
UPM1K101MHD6TO
Nichicon
UPM1K102MHD
Nichicon
UPM1K120MED
Nichicon
UPM1K120MED1TA
Nichicon

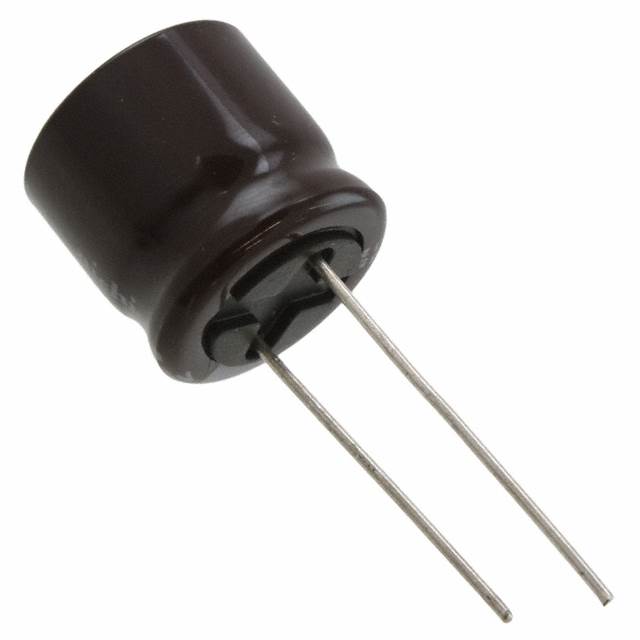

UPM1K121MHD6
