UQQ-24/4-Q12N-C
lmages are for reference only.UQQ-24/4-Q12N-C
DC DC CONVERTER 24V 96W
Datasheet8-DIP Module, 1/4 Brick
25,955 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 4A 10V - 36V Input
UQQ-24/4-Q12N-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | UQQ |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 96 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/4 Brick |
| Size / Dimension | 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | UQQ-24 |
| Voltage - Isolation | 2 kV |
| Product Attribute |  |
 |
|
 |

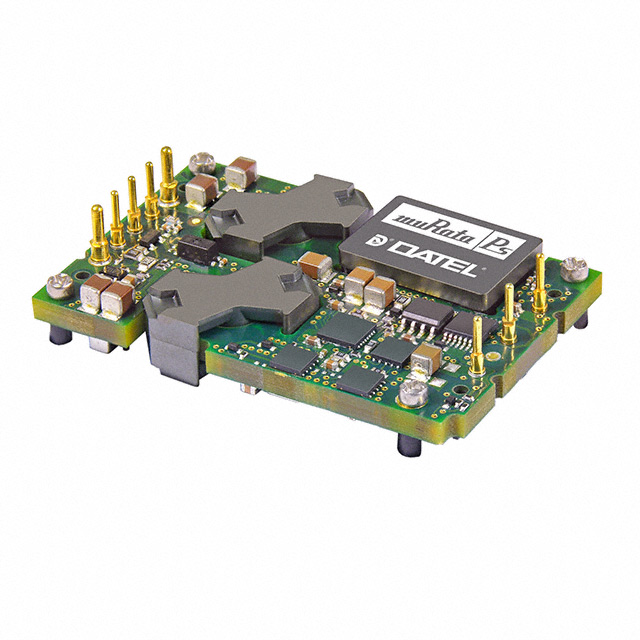

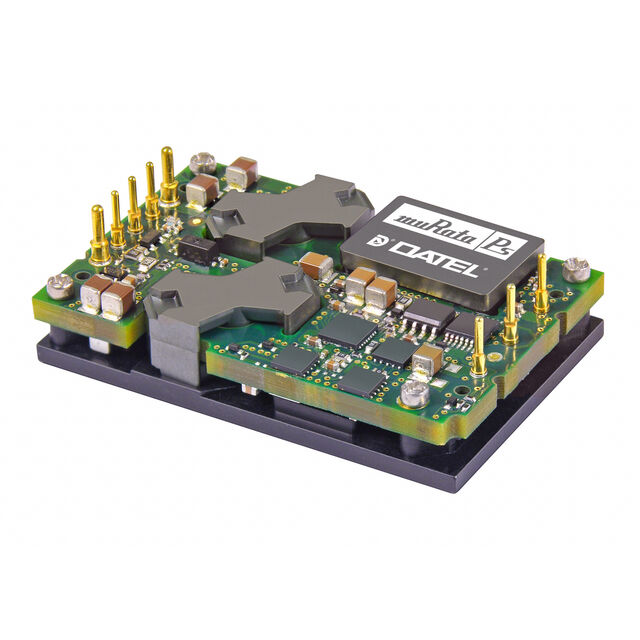

| Part Number | UQQ-24/4-Q12NB-C | UQQ-24/4-Q12P-C | UQQ-24/4-Q12P-C | UQQ-24/4-Q12PB-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 24V 96W | DC DC CONVERTER 24V 96W | DC DC CONVERTER 24V 96W | DC DC CONVERTER 24V 96W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tray |
