URB1D24LMD-20WR3

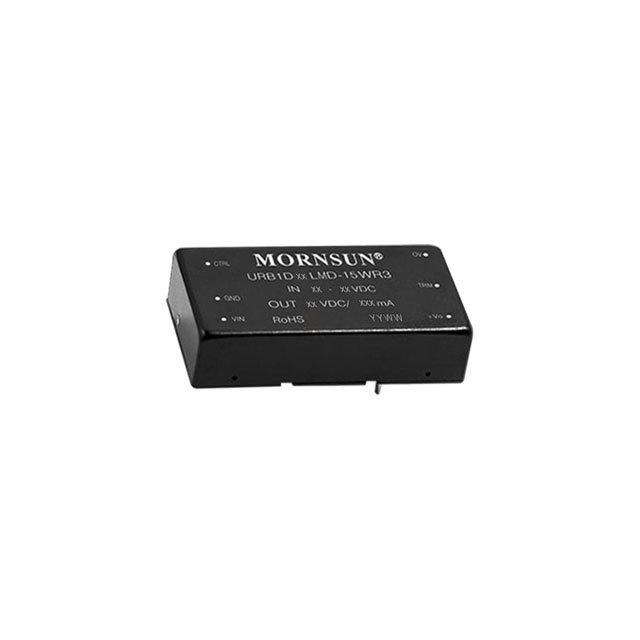

lmages are for reference only.URB1D24LMD-20WR3
ISOLATED MODULE DC DC CONVERTER
Datasheet6-DIP Module
64,580 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 833mA 40V - 160V Input
URB1D24LMD-20WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 833mA |
| Power (Watts) | 20 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, EN, IEC, UKCA, UL |
| Standard Number | 60950-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |

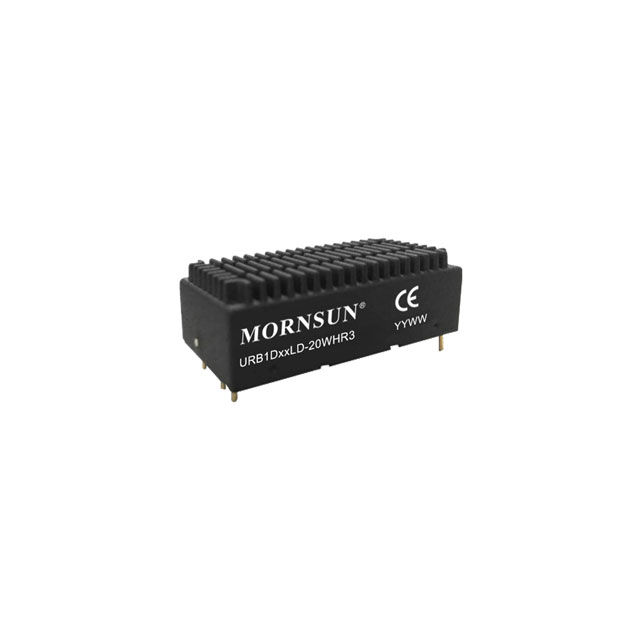

| Part Number | URB1D24LMD-20WHR3 | URB1D24LMD-10WHR3 | URB1D24LMD-10WR3 | URB1D24LMD-15WHR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | URB1D_LMD-15WR3 (20W) | URB1D_LMD-10WR3 (10W) | URB1D_LMD-10WR3 (10W) | URB1D_LMD-15WR3 (15W) |
