URB4815LD-60WHR3
lmages are for reference only.URB4815LD-60WHR3
ISOLATED MODULE DC DC CONVERTER1
Datasheet6-DIP Module
42,964 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 4A 18V - 75V Input
URB4815LD-60WHR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 60 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Heat Sink |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 93.3% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.6 kV |
| Product Attribute |  |
 |
 |
 |

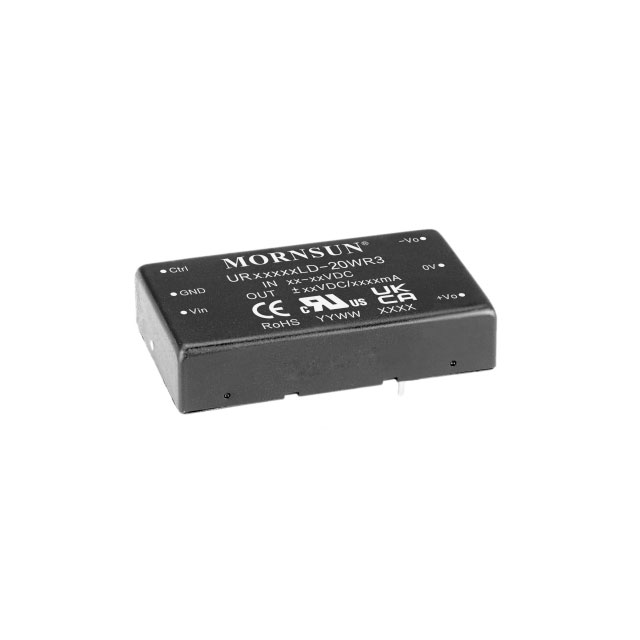

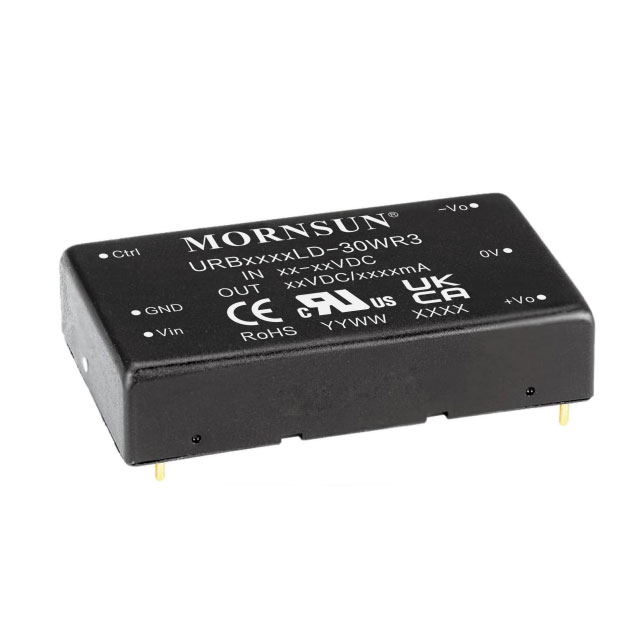

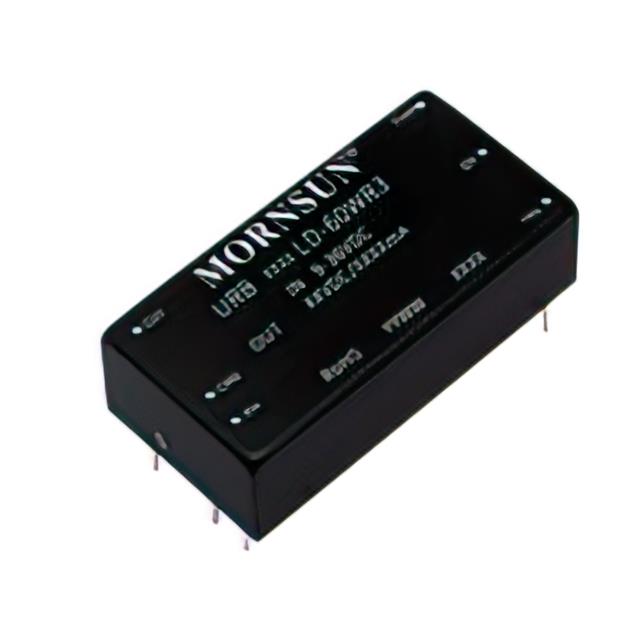

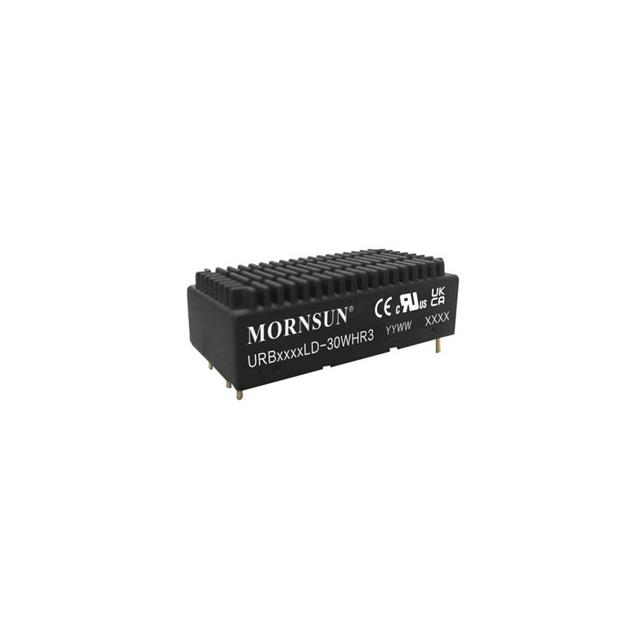

| Part Number | URB4815LD-60WR3 | URB4815LD-20WR3 | URB4815LD-30WHR3 | URB4815LD-30WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER1 | DC DC CONVERTER 15V 20W | ISOLATED MODULE DC DC CONVERTER | DC DC CONVERTER 15V 30W |
| Series | ||||
| Packaging | URB48_LD-60WR3 (60W) | URB4815LD-20WR3 (20W) | URB_LD-30WR3 (30W) | URB4815LD-30WR3 (30W) |
