Product CatalogPart Number
URP1C681MNN1012U
Manufacturer
Chinsan (Elite)Description
CAP ALUM POLY 680UF 20% 16V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
70,077 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
URP1C681MNN1012U
URP1C681MNN1012U

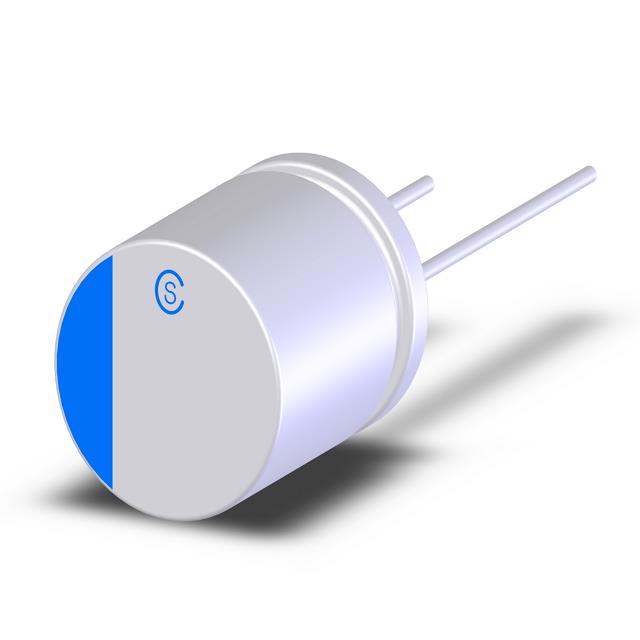

lmages are for reference only.Payment Methods
Delivery Services
680 µF 16 V Aluminum - Polymer Capacitors Radial, Can 12mOhm 2000 Hrs @ 105°C
Quick Inquiry
URP1C681MNN1012U
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | URP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.3 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | URP1C681MP30811U | UPS1C102MP51012 | UPS0J152MNN1012 | UPE1V101MP30811U |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 680UF 20% 16V TH | CAP ALUM POLY 1000UF 20% 16V TH | CAP ALUM POLY 1500UF 20% 6.3V TH | CAP ALUM POLY 100UF 20% 35V TH |
| Series | URP | UPS | UPS | UPE |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
