US5682ESE-AAA-000-RE

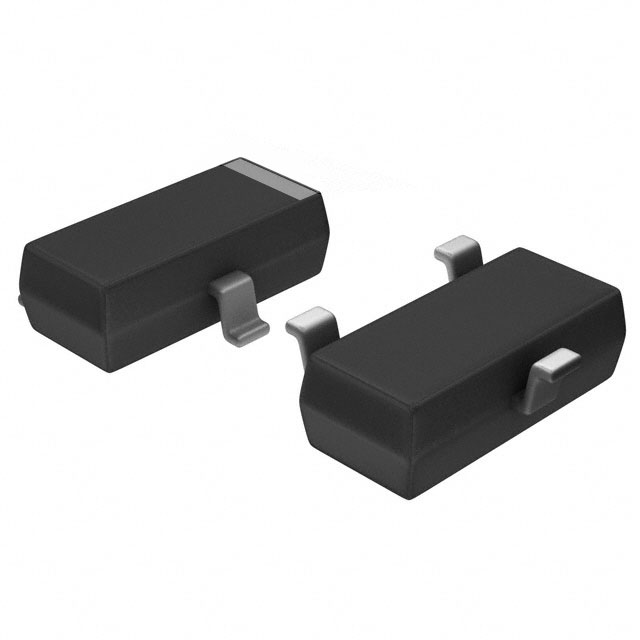

lmages are for reference only.US5682ESE-AAA-000-RE
MAGNETIC SWITCH UNIPOLAR SOT23-3
DatasheetTO-236-3, SC-59, SOT-23-3
106,992 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Switch Unipolar Switch Open Drain Hall Effect TSOT-23-3
US5682ESE-AAA-000-RE
| Category | Sensors, Transducers - Magnetic Sensors - Switches Solid State |
| Manufacturer | Melexis Technologies NV |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Function | Unipolar Switch |
| Technology | Hall Effect |
| Polarization | South Pole |
| Sensing Range | 7.2mT Trip, 2mT Release |
| Test Condition | 25°C |
| Voltage - Supply | 3.5V ~ 24V |
| Current - Supply (Max) | 5mA |
| Current - Output (Max) | 50mA |
| Output Type | Open Drain |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | US5682 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | US5682ESE-AAA-000-SP | US5681ESE-AAA-000-RE | US5681ESE-AAA-000-SP | US5681KSE-AAA-000-RE |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MAGNETIC SWITCH SOT23-3 | MAGNETIC SWITCH UNIPOLAR TSOT3 | MAGNETIC SWITCH IC TSOT3 | MAGNETIC SWITCH UNIPOL TSOT23-3 |
| Series | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
