USB50403E3/TR7

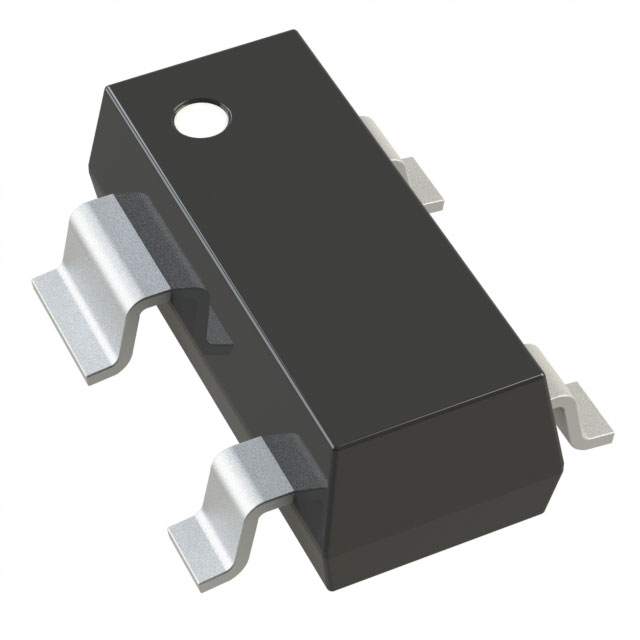

lmages are for reference only.USB50403E3/TR7
TVS DIODE 3.3VWM 11VC SOT143
DatasheetTO-253-4, TO-253AA
75,211 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-143
USB50403E3/TR7
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Voltage - Breakdown (Min) | 4V |
| Voltage - Clamping (Max) @ Ipp | 11V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | Ethernet |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-253-4, TO-253AA |
| Supplier Device Package | SOT-143 |
| Base Product Number | USB50403 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | USB50403CE3/TR7 | USB50405CE3/TR7 | USB50405E3/TR7 | USB50412CE3/TR7 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 3.3VWM 11VC SOT143 | TVS DIODE 5VWM 13VC | TVS DIODE 5VWM 13VC SOT143 | TVS DIODE 12VWM 26VC SOT143 |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
