UU16LFNP-152

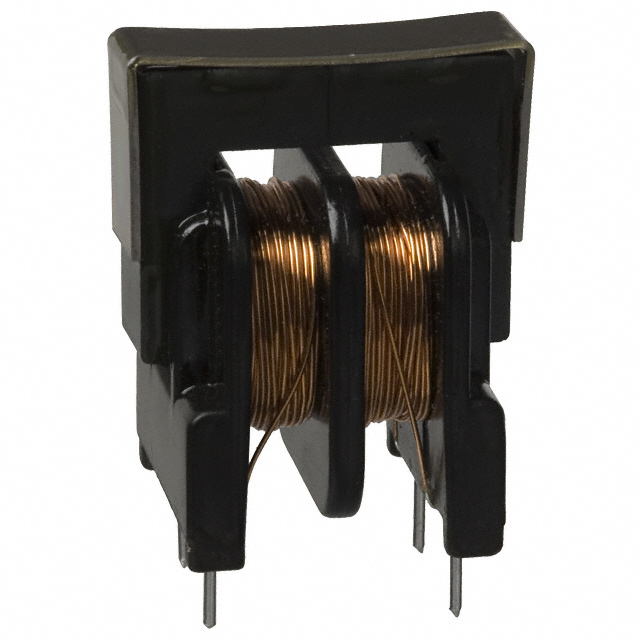

lmages are for reference only.UU16LFNP-152
CMC 1.5MH 1.9A 2LN TH
DatasheetVertical, 4 PC Pin
82,613 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.9A DCR 125mOhm
UU16LFNP-152
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Sumida America Components Inc. |
| Series | UU |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 1.5 mH @ 1 kHz |
| Current Rating (Max) | 1.9A |
| DC Resistance (DCR) (Max) | 125mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | - |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.866" L x 0.787" W (22.00mm x 20.00mm) |
| Height (Max) | 1.122" (28.50mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UU16LFNP-203 | UU16LFNP-303 | UU16LFNP-402 | UU16LFNP-802 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 20MH 500MA 2LN TH | CMC 30MH 400MA 2LN TH | CMC 4MH 1.2A 2LN TH | CMC 8MH 900MA 2LN TH |
| Series | UU | UU | UU | UU |
| Packaging | Bulk | Bulk | Bulk | Bulk |
