UU9LFNP-B222
lmages are for reference only.UU9LFNP-B222
CMC 2.2MH 500MA 2LN TH
DatasheetVertical, 4 PC Pin
65,212 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 700mOhm

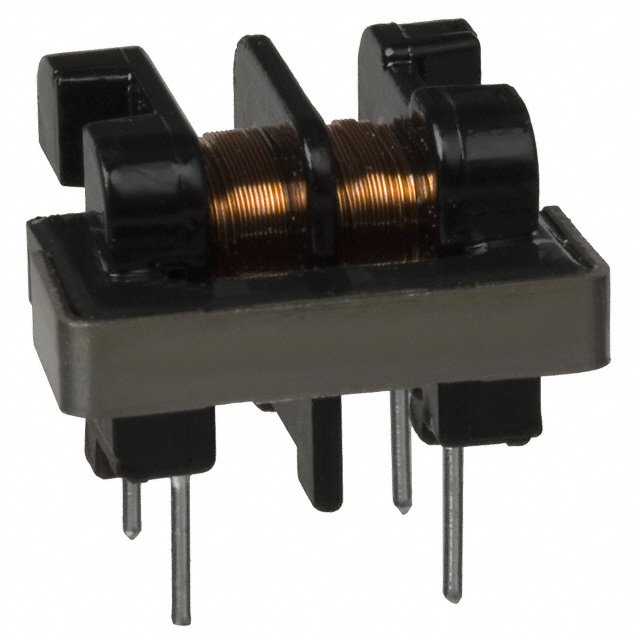

UU9LFNP-B222
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Sumida America Components Inc. |
| Series | UU |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 2.2 mH @ 1 kHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 700mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | - |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.650" L x 0.433" W (16.50mm x 11.00mm) |
| Height (Max) | 0.650" (16.50mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | UU9LFNP-B-B102 | UU9LFNP-B-B103 | UU9LFNP-B-B222 | UU9LFNP-B-B392 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | COMMON MODE CHOKE | CMC 10MH 200MA 2LN TH | COMMON MODE CHOKE | COMMON MODE CHOKE |
| Series | UU | UU | UU | UU |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Bulk |
