UV300-15-G-164LF
lmages are for reference only.UV300-15-G-164LF
300W DC-DC 3/4 Brick, 300V In, 1
DatasheetThree Quarter Brick
36,054 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 20A 220V - 400V Input
UV300-15-G-164LF
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Astrodyne TDI |
| Series | UV300 (300W) |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 220V |
| Voltage - Input (Max) | 400V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 300 W |
| Applications | ITE (Commercial) |
| Features | Baseplate, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Three Quarter Brick |
| Size / Dimension | 3.60" L x 2.40" W x 0.50" H (91.4mm x 61.0mm x 12.7mm) |
| Supplier Device Package | Three Quarter Brick |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 4.5 kV |
| Product Attribute |  |
 |
 |
 |

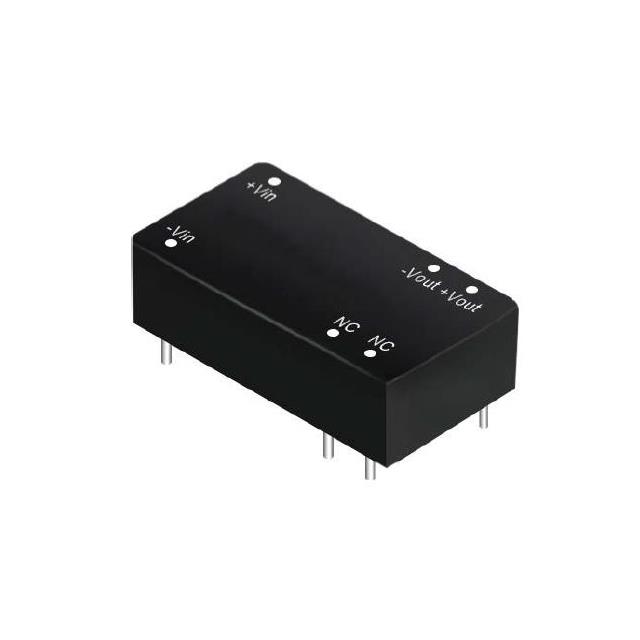

| Part Number | UV300-12-164LF | UC10-24D15 | UC10-24S12 | UC10-24S24 |
| Manufacturer | Astrodyne TDI | Adam Tech | Adam Tech | Adam Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 300W DC-DC 3/4 Brick, 300V In, 1 | DC-DC CONVERTER, ISOLATED MODULE | DC-DC CONVERTER, ISOLATED MODULE | DC-DC CONVERTER, ISOLATED MODULE |
| Series | Astrodyne TDI | Adam Tech | Adam Tech | Adam Tech |
| Packaging | Tape & Box (TB) | Tube | Tube | Tube |
