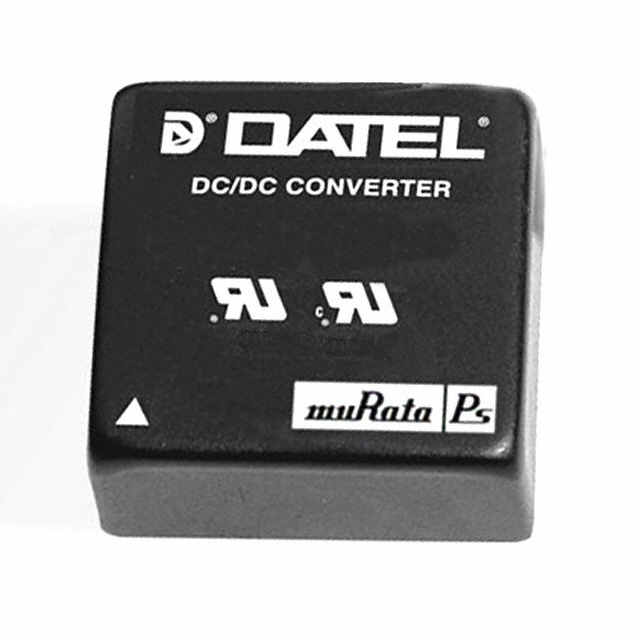

UWR-5/4000-D48E-C
lmages are for reference only.UWR-5/4000-D48E-C
DC DC CONVERTER 5V 20W
Datasheet8-DIP Module, 6 Leads
25,268 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 4A 36V - 72V Input
UWR-5/4000-D48E-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | UWR (15W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 20 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 65°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 6 Leads |
| Size / Dimension | 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | UWR-5 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

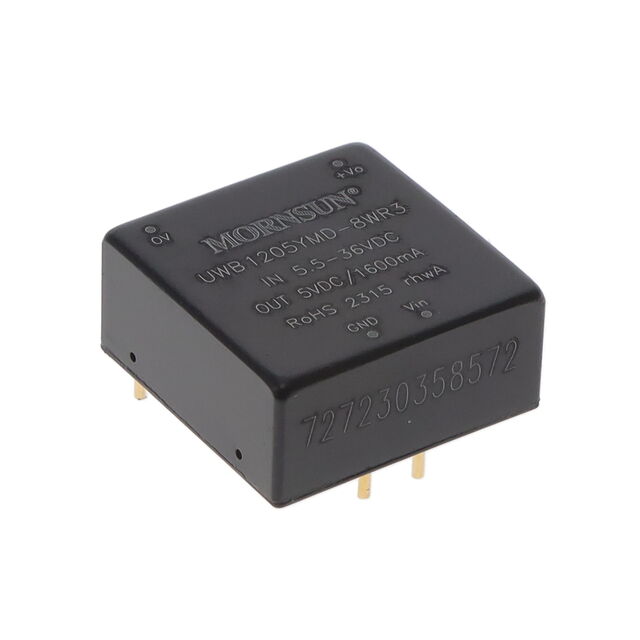

| Part Number | UWR-5/4000-D12A-C | UWR-5/4000-D48A-C | UWB1205YMD-8WR3 | UWE-12/10-Q12N-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Mornsun America, LLC | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 5V 20W | DC DC CONVERTER 5V 20W | DC DC CONVERTER 5V 8W | DC DC CONVERTER 12V 120W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | |
| Packaging | Tube | Tube | UWB1205YMD-8WR3 (8W) | Tray |
