UWTH1D54QB-100WFR3
lmages are for reference only.UWTH1D54QB-100WFR3
ISOLATED MODULE DC DC CONVERTER
DatasheetQuarter Brick
41,936 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

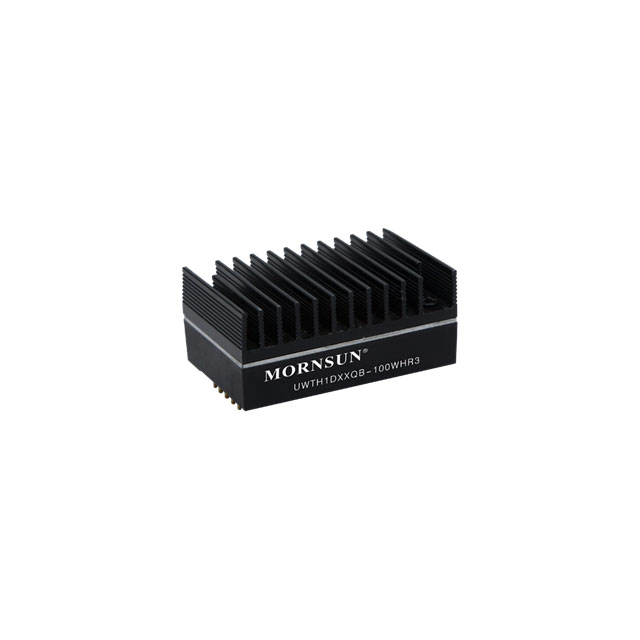

Isolated Module DC DC Converter 1 Output 54V 1.85A 14V - 160V Input
UWTH1D54QB-100WFR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 14V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 54V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.85A |
| Power (Watts) | 100 W |
| Applications | ITE (Commercial), Railway |
| Features | Heat Sink |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | CB, CE, cCSAus, EN, IEC, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | UWTH1D54QB-100WHR3 | UWTH1D54QB-100WR3 | UWTH1D03LD-10WFR3 | UWTH1D05LD-20WHR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | UWTH1D_QB-100W(H/F)R3 (100W) | UWTH1D_QB-100W(H/F)R3 (100W) | UWTH1D_LD-10W(F/H)R3 (10W) | UWTH1D_LD-20W(F/H)R3 (20W) |
