Product CatalogPart Number
UWX1E101MCL1GB
Manufacturer
NichiconDescription
CAP ALUM 100UF 20% 25V SMD
Datasheet
DatasheetPackage
Radial, Can - SMD
In Stock
92,251 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UWX1E101MCL1GB
UWX1E101MCL1GB

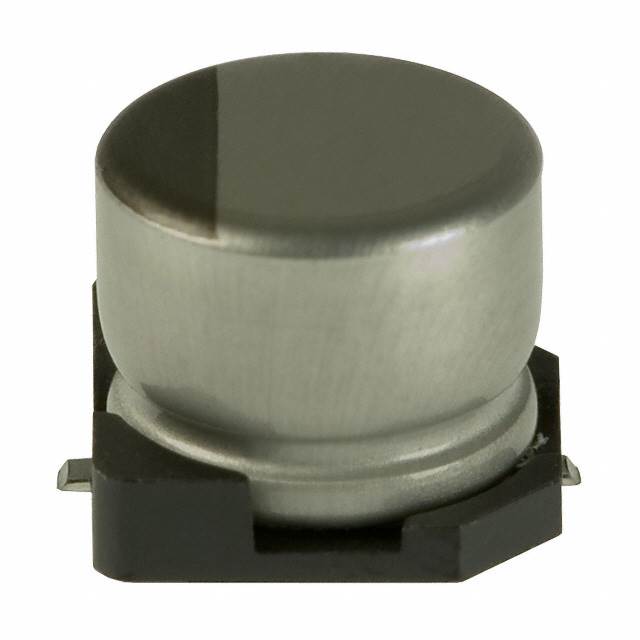

lmages are for reference only.Payment Methods
Delivery Services
100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Quick Inquiry
UWX1E101MCL1GB
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | UWX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 165 mA @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UWX1E101MCR1GB | UWX1A151MCL1GB | UWX1A220MCL1GB | UWX1A221MCL1GB |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 100UF 20% 25V SMD | CAP ALUM 150UF 20% 10V SMD | CAP ALUM 22UF 20% 10V SMD | CAP ALUM 220UF 20% 10V SMD |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
