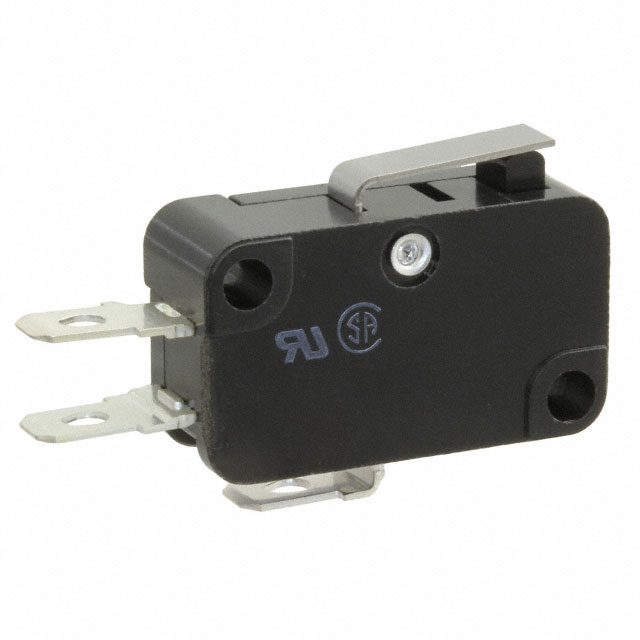

V-10G25K-1E4-K
lmages are for reference only.V-10G25K-1E4-K
SWITCH SNAP ACTION SPDT 10A 250V
Datasheet-
56,729 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPDT Chassis Mount
V-10G25K-1E4-K
| Category | Switches - Limit Switches - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | V |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | V-10 |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 10A (AC), 600mA (DC) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount |
| Termination Style | - |
| Ingress Protection | IP40 |
| Electrical Life | 300,000 Cycles |
| Mechanical Life | 50,000,000 Cycles |
| Features | - |
| Operating Force | 60gf |
| Release Force | 6.000gf |
| Operating Position | 0.598" (15.2mm) |
| Pretravel | 0.131" (3.3mm) |
| Differential Travel | 0.031" (0.8mm) |
| Overtravel | 0.090" (2.3mm) |
| Operating Temperature | -25°C ~ 80°C |
| Product Attribute | |
 |
|
 |

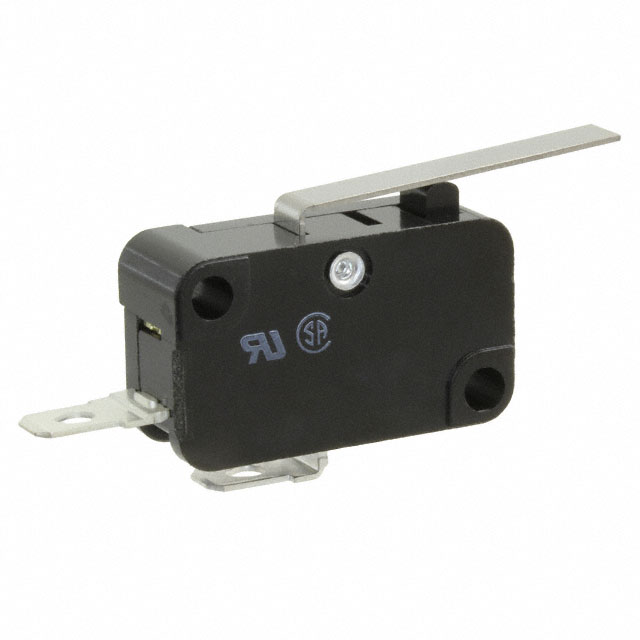

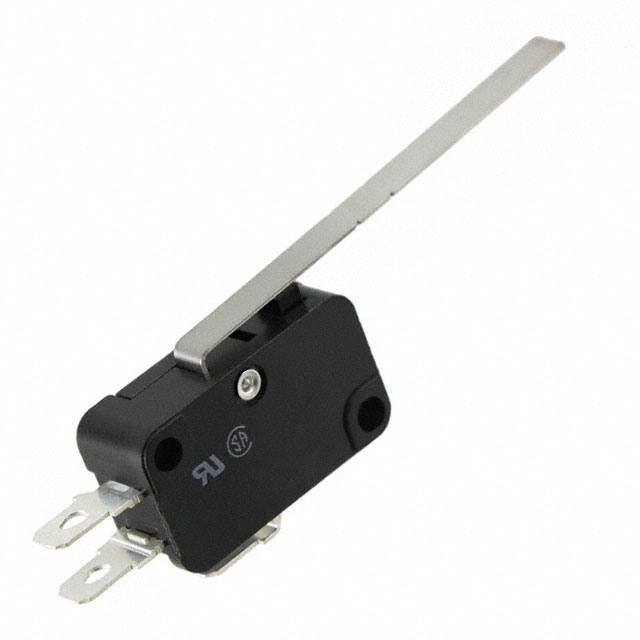

| Part Number | V-101-3A5 | V-102-3A5 | V-102K-1C4 | V-103-1A5-T |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | MINIATURE BASIC SWITCH | SWITCH SNAP ACT SPST-NO 10A 250V | SWITCH SNAP ACTION MINI BASIC | SWITCH MINI BASIC |
| Series | V | V | * | - |
| Packaging | Bulk | Box | Bulk | Bulk |
