Product CatalogPart Number
V100ZA15
Manufacturer
Littelfuse Inc.Description
VARISTOR 100V 4.5KA DISC 14MM
Datasheet
DatasheetPackage
Disc 14mm
In Stock
43,196 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
V100ZA15
V100ZA15
lmages are for reference only.Payment Methods
Delivery Services
100 V 4.5 kA Varistor 1 Circuit Through Hole Disc 14mm
Quick Inquiry
V100ZA15
Specifications
| Category | Circuit Protection - Varistors-MOVs - |
| Manufacturer | Littelfuse Inc. |
| Series | ZA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Maximum AC Volts | 60 V |
| Maximum DC Volts | 81 V |
| Varistor Voltage (Min) | 90 V |
| Varistor Voltage (Typ) | 100 V |
| Varistor Voltage (Max) | 110 V |
| Current - Surge | 4.5 kA |
| Energy | 20J |
| Number of Circuits | 1 |
| Capacitance @ Frequency | 2900 pF @ 1 MHz |
| Operating Temperature | -55°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Disc 14mm |
| Features | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|
| Part Number | V100ZA15 | V100ZA15P | V100ZA15PX1347 | V100ZA15PX2855 |
| Manufacturer | Harris Corporation | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RADIAL LEAD VARISTOR | VARISTOR 100V 4.5KA DISC 14MM | VARISTOR 100V 4.5KA DISC 14MM | VARISTOR 100V 4.5KA DISC 14MM |
| Series | ZA | ZA | ZA | ZA |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

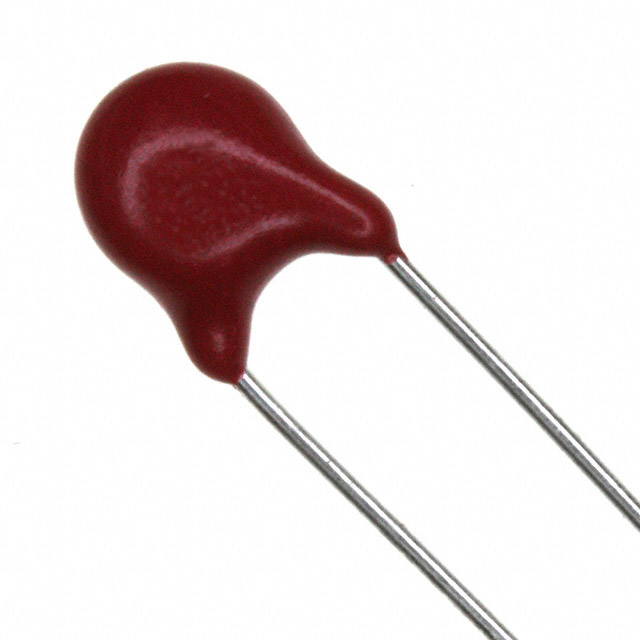

V100ZA05
Littelfuse Inc.
V100ZA05P
Littelfuse Inc.
V100ZA05PX2855
Littelfuse Inc.
V100ZA15
Harris Corporation

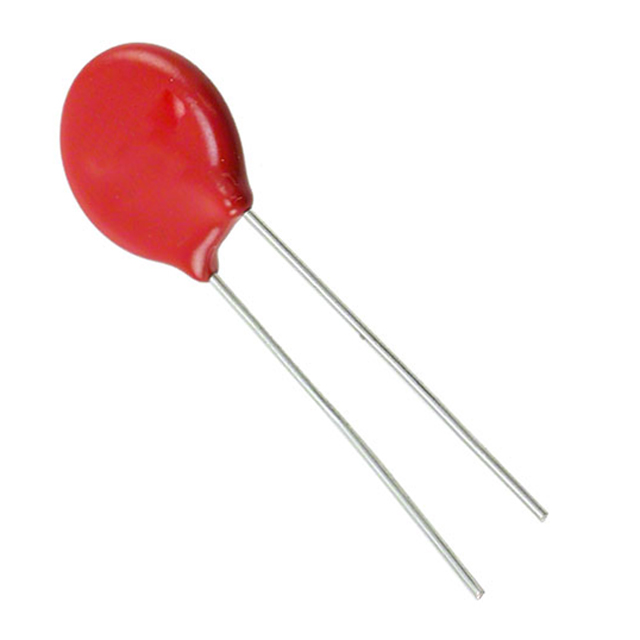

V100ZA15P
Littelfuse Inc.
V100ZA15PX1347
Littelfuse Inc.
V100ZA15PX2855
Littelfuse Inc.

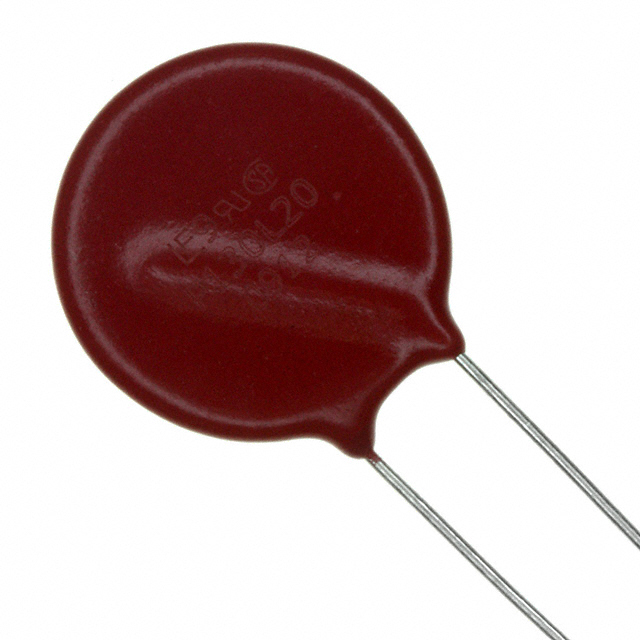

V100ZA20P
Littelfuse Inc.
V100ZA20PX10
Littelfuse Inc.

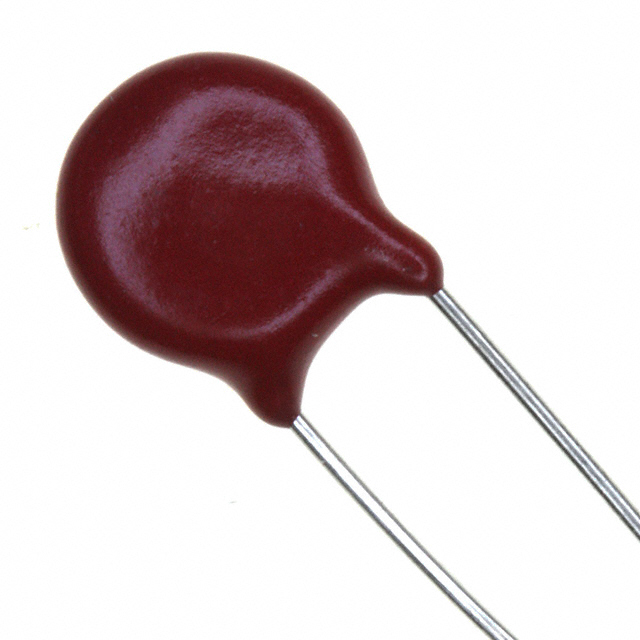

V100ZA3
Littelfuse Inc.
V100ZA3P
Littelfuse Inc.
V100ZA3PX2855
Littelfuse Inc.

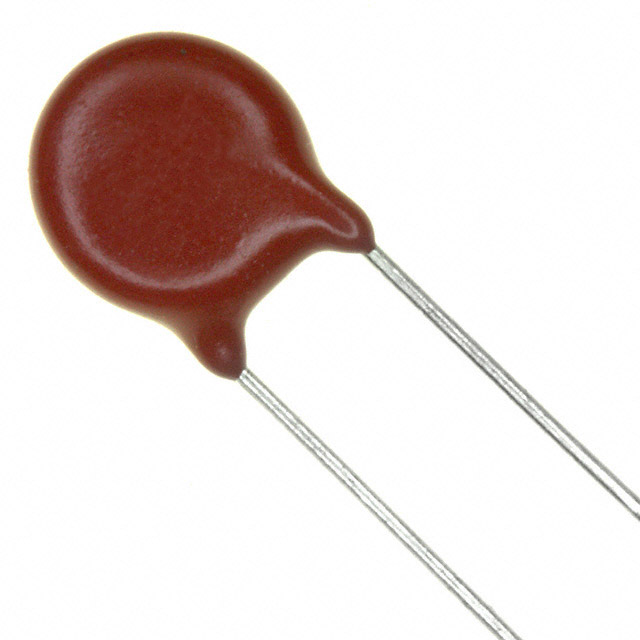

V100ZA4
