V12PL63-M3/H

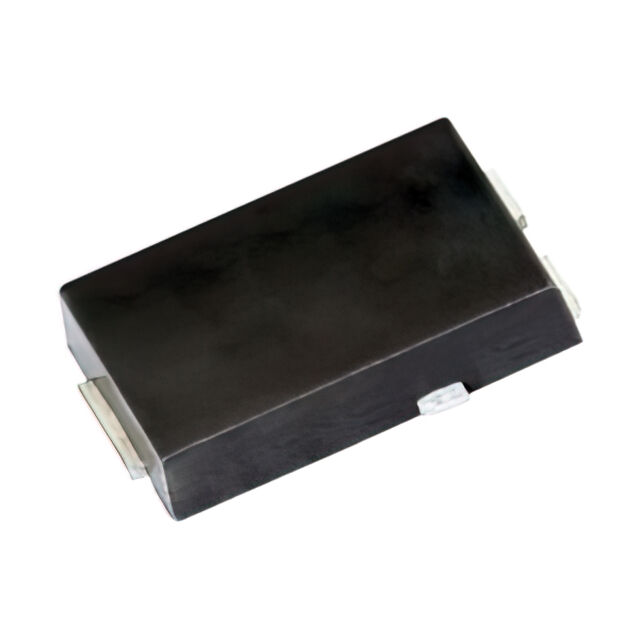

lmages are for reference only.V12PL63-M3/H
12A, 60V, SMPC TRENCH SKY RECT.
DatasheetTO-277, 3-PowerDFN
20,868 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 60 V 12A Surface Mount TO-277A (SMPC)
V12PL63-M3/H
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 12A |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 12 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 450 µA @ 60 V |
| Capacitance @ Vr, F | 2600pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277A (SMPC) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | V12PL63 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|
| Part Number | V12PL63-M3/I | V12PL63HM3/H | V12PL63HM3/I | V10150S-E3/4W |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 12A, 60V, SMPC TRENCH SKY RECT. | 12A, 60V, SMPC TRENCH SKY RECT. | 12A, 60V, SMPC TRENCH SKY RECT. | DIODE SCHOTTKY 150V 10A TO220-3 |
| Series | - | - | - | TMBS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
