V15S05-CP100-01
lmages are for reference only.V15S05-CP100-01
SWITCH SNAP ACT SPST-NO 5A 125V
Datasheet-
74,521 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPST-NO Chassis Mount
V15S05-CP100-01
| Category | Switches - Limit Switches - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | V15 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | V15S0 |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 5A (AC), 100mA (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Ingress Protection | - |
| Electrical Life | - |
| Mechanical Life | 1,000,000 Cycles |
| Features | - |
| Operating Force | 100gf |
| Release Force | 25gf |
| Operating Position | 0.579" (14.7mm) |
| Pretravel | 0.060" (1.5mm) |
| Differential Travel | 0.020" (0.5mm) |
| Overtravel | 0.030" (0.76mm) |
| Operating Temperature | -25°C ~ 85°C |
| Product Attribute |  |
 |
|
 |

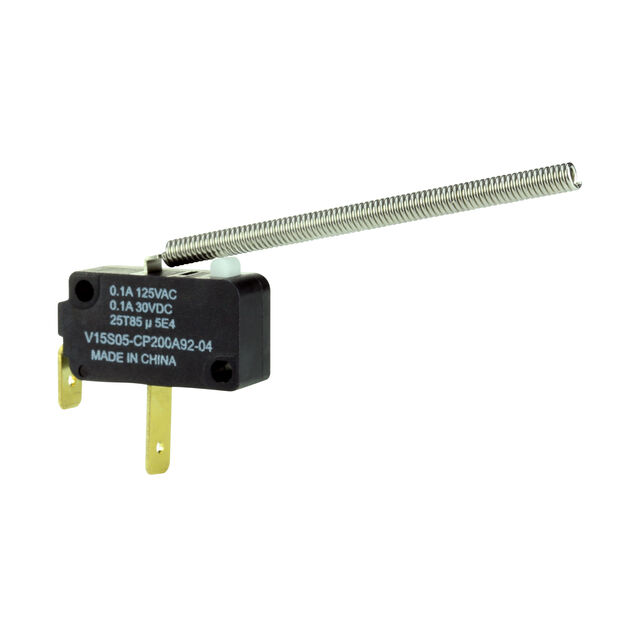

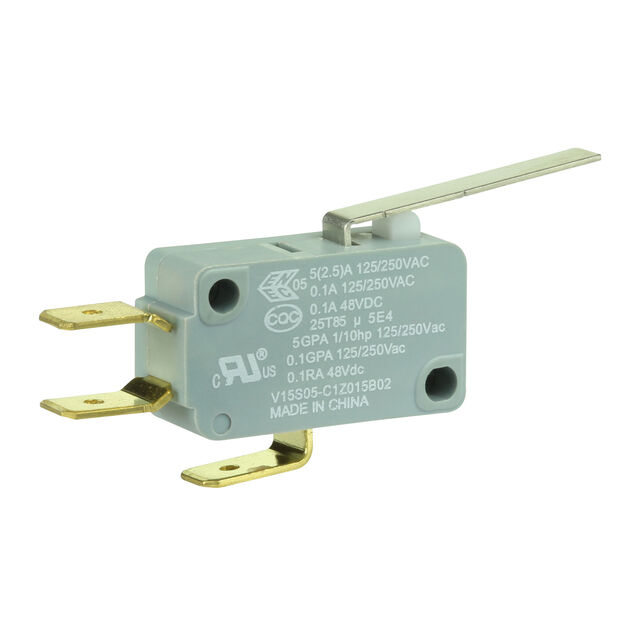

| Part Number | V15S05-CP200A91-02 | V15S05-CP200A92-04 | V15S05-1EZ050-K01 | V15S05-C1Z015B02 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SWITCH SNAP ACT SPST-NO 5A 125V | SWITCH BASIC | SWITCH SNAP ACTION SPDT 5A 125V | SWITCH SNAP ACTION SPDT 5A 125V |
| Series | V15 | * | V15 | V15 |
| Packaging | Bulk | Tray | Bulk | Bulk |
