V23079A1008B301

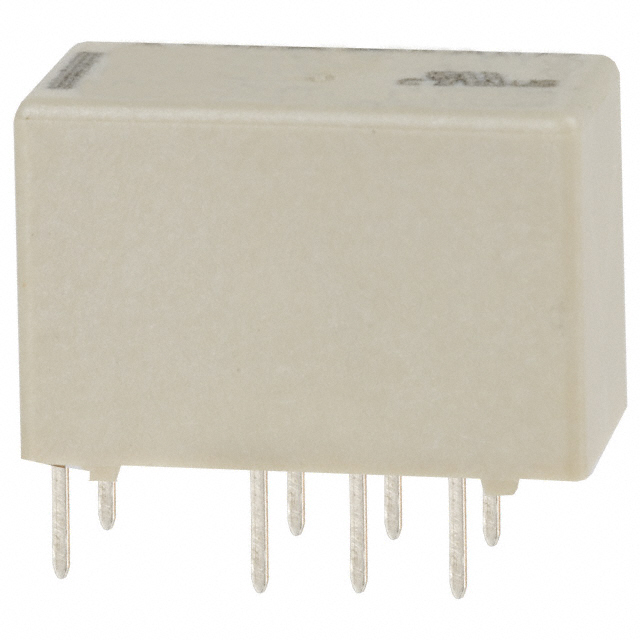

lmages are for reference only.V23079A1008B301
RELAY GENERAL PURPOSE DPDT 2A 3V
Datasheet-
80,918 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) Through Hole
V23079A1008B301
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23079, AXICOM |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 3VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 500VA, 440W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 2.25 VDC |
| Must Release Voltage | 0.3 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | 1393788 |
| Coil Current | 46.7 mA |
| Coil Resistance | 64 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | V23079A1001B301 | V23079A1002B301 | V23079A1003B301 | V23079A1005B301 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RELAY GENERAL PURPOSE DPDT 2A 5V | RELAY GENERAL PURPOSE DPDT 2A 6V | RELAY GEN PURPOSE DPDT 2A 12V | RELAY GEN PURPOSE DPDT 2A 24V |
| Series | V23079, AXICOM | V23079, AXICOM | V23079, AXICOM | V23079, AXICOM |
| Packaging | Tube | Tube | Tube | Tube |
