V23100V4024A011

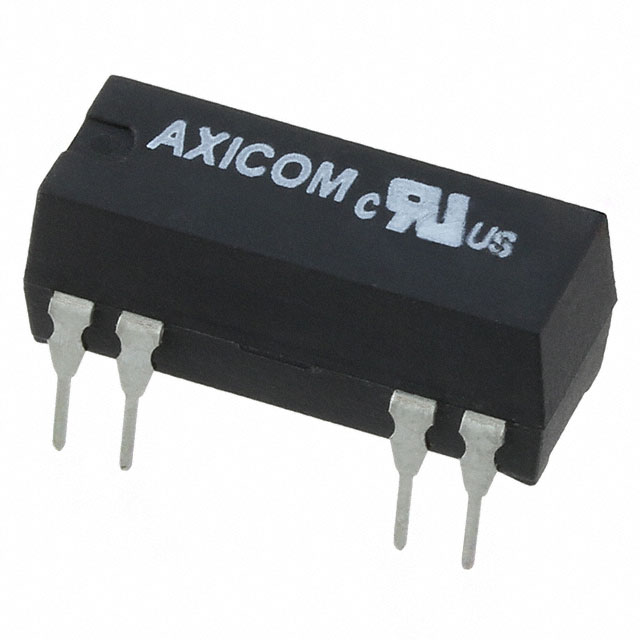

lmages are for reference only.V23100V4024A011
RELAY REED SPST 500MA 24V
Datasheet-
28,619 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
V23100V4024A011
| Category | Relays - Reed Relays - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23100-V4, AXICOM |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 200VAC, 200VDC - Max |
| Coil Type | Non Latching |
| Features | Diode, Electrostatic Shield |
| Termination Style | PC Pin |
| Seal Rating | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 3.6 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Ruthenium (Ru) |
| Coil Resistance | 2 kOhms |
| Coil Current | 12 mA |
| Operate Time | 0.75 ms |
| Release Time | 0.15 ms |
| Base Product Number | V23100 |
| Product Attribute | |
|
|
|
| Part Number | V23100V4024A010 | V23100V4024A 1 | V23100V4024A000 | V23100V4024A1 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY REED SPST 500MA 24V | RELAY REED SPST 500MA 24V | RELAY REED SPST 500MA 24V | Dry Reed Relay, 1 Form A, SPST, |
| Series | V23100-V4, AXICOM | V23100-V4, AXICOM | V23100-V4, AXICOM | * |
| Packaging | Tube | Tube | Tube | Tube |
