V23101D 2B201

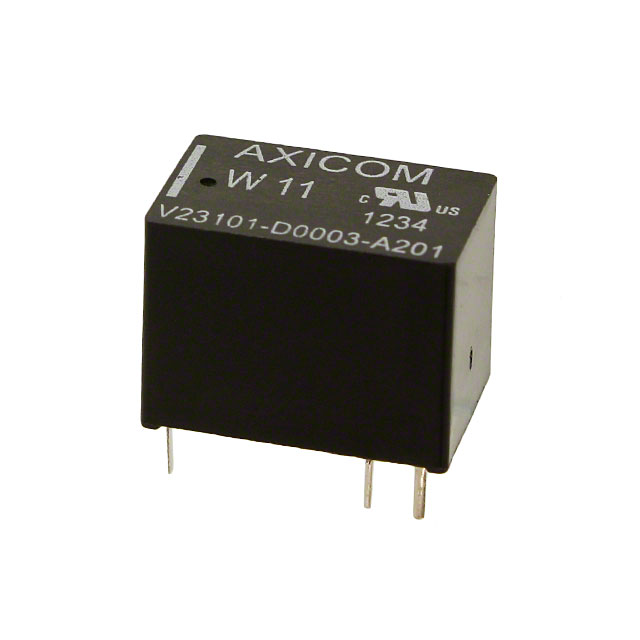

lmages are for reference only.V23101D 2B201
RELAY GEN PURPOSE SPDT 1.25A 3V
Datasheet-
69,334 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) Through Hole
V23101D 2B201
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23101, AXICOM |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 3VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1.25 A |
| Switching Voltage | 125VAC, 120VDC - Max |
| Load - Max Switching | 62.5VA, 30W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 2.1 VDC |
| Must Release Voltage | 0.3 VDC |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | V23101 |
| Coil Current | 150 mA |
| Coil Resistance | 20 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | V23101D 101A201 | V23101D 101B201 | V23101D 102A201 | V23101D 102B201 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURP SPDT 1.25A 1.5V | RELAY GEN PURP SPDT 1.25A 1.5V | RELAY GEN PURPOSE SPDT 1.25A 3V | RELAY GEN PURPOSE SPDT 1.25A 3V |
| Series | V23101, AXICOM | V23101, AXICOM | V23101, AXICOM | V23101, AXICOM |
| Packaging | Tube | Tube | Tube | Tube |
