Product CatalogPart Number
V7812-1000R
Manufacturer
CUI Inc.Description
DC DC CONVERTER 12V 12W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
60,037 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
V7812-1000R
V7812-1000R
lmages are for reference only.Payment Methods
Delivery Services
Linear Regulator Replacement DC DC Converter 1 Output 12V 1A 16V - 32V Input
Quick Inquiry
V7812-1000R
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | V78-1000 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Linear Regulator Replacement |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 16V |
| Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 12 W |
| Applications | ITE (Commercial) |
| Features | OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole, Right Angle |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | V7812 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

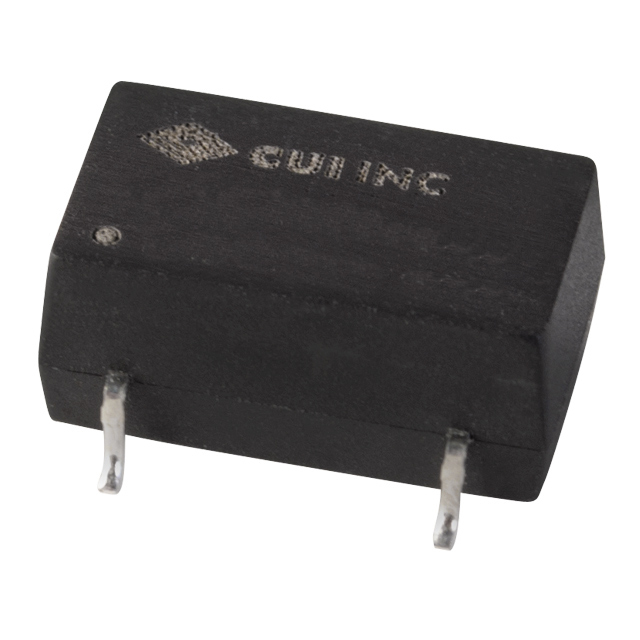

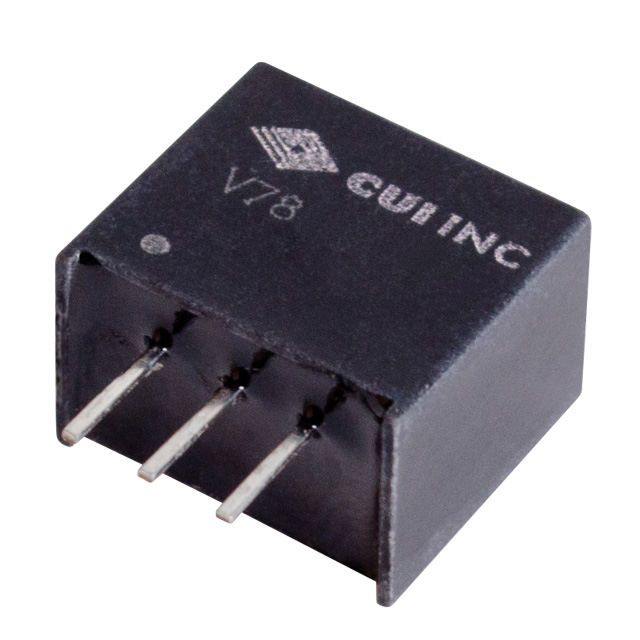

| Part Number | V7812-1000 | V7812-1000R | V7812-500 | V7812-500-SMT |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 12V 12W | DC DC CONVERTER 12V 12W | DC DC CONVERTER 12V 6W | DC DC CONVERTER 12V 6W |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tube | Tube | Tube | Tube |
