V8N3170-M3/I

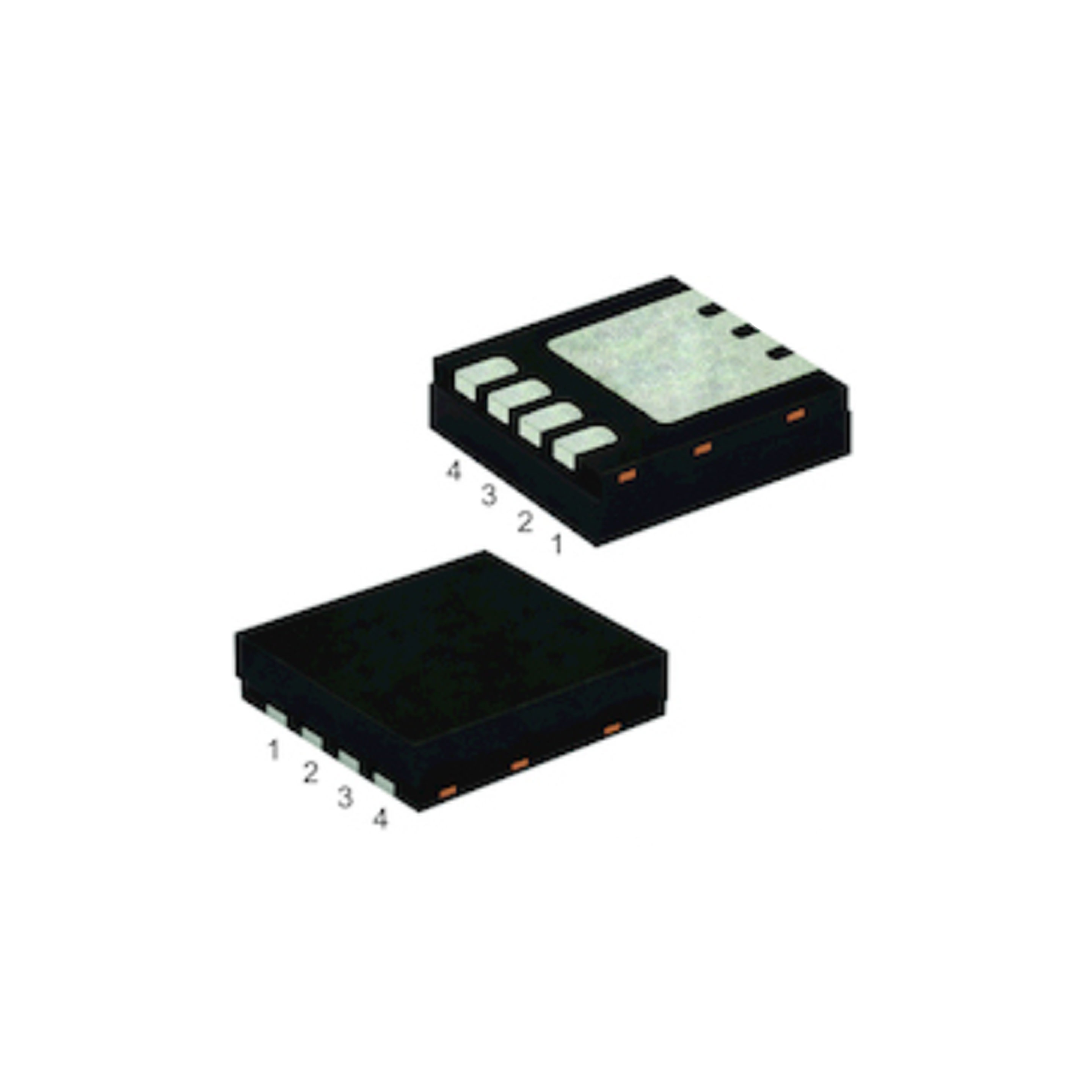

lmages are for reference only.V8N3170-M3/I
8A, 170V DFN33A TMBS RECT
Datasheet8-PowerVDFN
93,797 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 170 V 2A Surface Mount DFN33A
V8N3170-M3/I
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TMBS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 170 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 870 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 30 µA @ 170 V |
| Capacitance @ Vr, F | 340pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | DFN33A |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | V8N3170HM3/I | V8N3M103S-M3/I | V8N3M103SHM3/I | V8P10-E3/86A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 8A, 170V DFN33A TMBS RECT | 8A, 100V DFN33A TMBS RECT | 8A, 100V DFN33A TMBS RECT | DIODE SCHOTTKY 100V 8A TO277A |
| Series | TMBS® | TMBS® | TMBS® | eSMP®, TMBS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
