V8PA103-M3/I

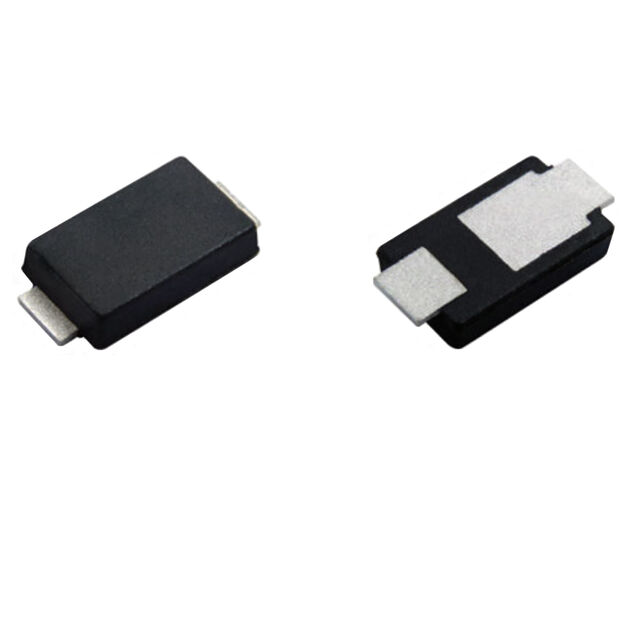

lmages are for reference only.Payment Methods
Delivery Services
Diode 100 V 8A Surface Mount DO-221BC (SMPA)
V8PA103-M3/I
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 740 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 330 µA @ 100 V |
| Capacitance @ Vr, F | 920pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-221BC, SMA Flat Leads Exposed Pad |
| Supplier Device Package | DO-221BC (SMPA) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | V8PA103-M3/H | V8PA10-M3/I | V8PA103HM3/H | V8PA103HM3/I |
| Manufacturer | Vishay | Vishay General Semiconductor - Diodes Division | Vishay | Vishay |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 8A, 100V, SMPA TRENCH SKY RECT. | DIODE SCHOTTKY 100V 8A DO221BC | 8A, 100V, SMPA TRENCH SKY RECT. | 8A, 100V, SMPA TRENCH SKY RECT. |
| Series | - | eSMP®, TMBS® | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
