V8PM12-M3/87A
lmages are for reference only.V8PM12-M3/87A
DIODE SCHOTTKY 120V 3.6A TO277A
DatasheetTO-277, 3-PowerDFN
92,973 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 120 V 3.6A Surface Mount TO-277A (SMPC)
V8PM12-M3/87A
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) | 3.6A |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 300 µA @ 120 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277A (SMPC) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | V8PM12 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

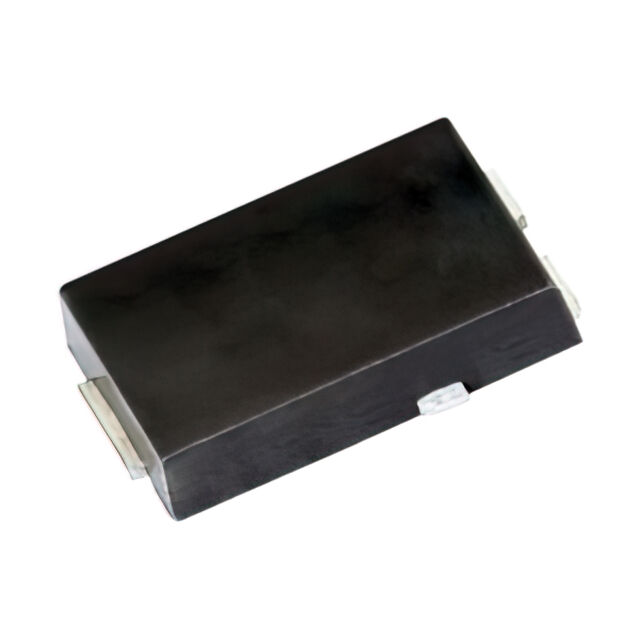

| Part Number | V8PM12-M3/86A | V8P10-E3/86A | V8P10-E3/87A | V8P10-M3/86A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 120V 8A TO277A | DIODE SCHOTTKY 100V 8A TO277A | DIODE SCHOTTKY 100V 8A TO277A | DIODE SCHOTTKY 100V 8A TO277A |
| Series | eSMP®, TMBS® | eSMP®, TMBS® | eSMP®, TMBS® | eSMP®, TMBS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
