VCAN36A2-03G-E3-08

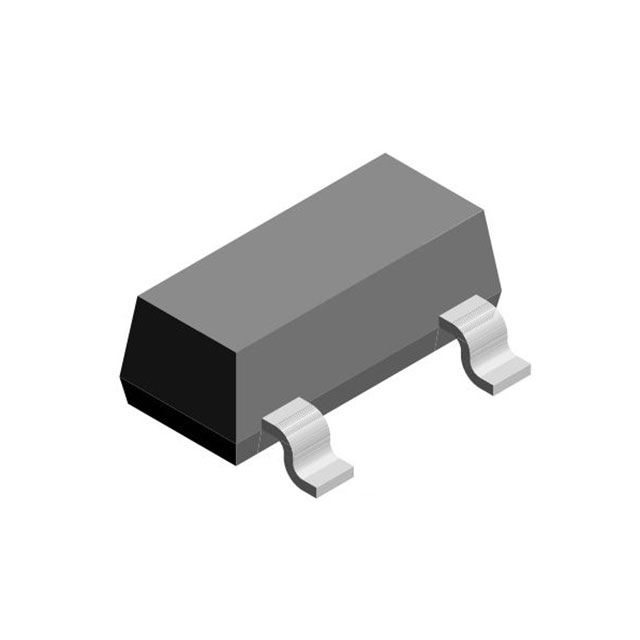

lmages are for reference only.VCAN36A2-03G-E3-08
TVS DIODE 36VWM 63VC SOT323
DatasheetSC-70, SOT-323
86,539 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
63V Clamp 2.4A (8/20µs) Ipp Tvs Diode Surface Mount SOT-323
VCAN36A2-03G-E3-08
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 36V (Max) |
| Voltage - Breakdown (Min) | 39V |
| Voltage - Clamping (Max) @ Ipp | 63V |
| Current - Peak Pulse (10/1000µs) | 2.4A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | CAN |
| Capacitance @ Frequency | 8pF @ 1MHz |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Base Product Number | VCAN36 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VCAN36A2-03G-E3-18 | VCAN36A2-03GHE3-08 | VCAN36A2-03GHE3-18 | VCAN36A2-03S-E3-08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 36VWM 63VC SOT323 | TVS DIODE 36VWM 63VC SOT323 | TVS DIODE 36VWM 63VC SOT323 | TVS DIODE 36VWM 63VC SOT23-3 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
