VCB4812SBO-100WR3

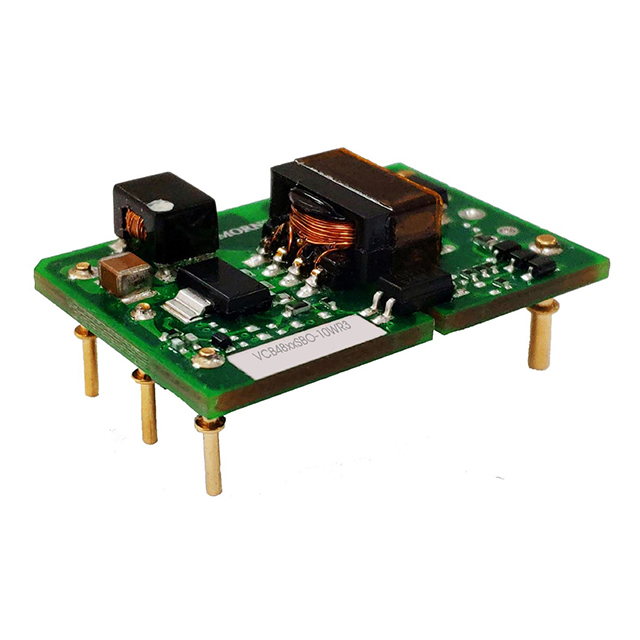

lmages are for reference only.VCB4812SBO-100WR3
DC DC CONVERTER, 100W, 12V
DatasheetSixteenth Brick
69,900 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 8.333A 36V - 75V Input
VCB4812SBO-100WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.333A |
| Power (Watts) | 100 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Sixteenth Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.38" H (33.0mm x 22.9mm x 9.7mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | VCB4812SBO-100WFR3 | VCB4812SBO-100WFR3-N | VCB4812SBO-100WR3-N | VCB4812SBO-10WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER, 100W, 12V, HEAT | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | DC DC CONVERTER 12V 10W |
| Series | ||||
| Packaging | VCB48_SBO-100WFR3 (100W) | VCB48_SBO-100W(F)R3(-N) | VCB48_SBO-100W(F)R3(-N) (100W) | VCB48_SBO-10WR3 (10W) |
