VCB4824QBO-200WR3-N
lmages are for reference only.VCB4824QBO-200WR3-N
ISOLATED MODULE DC DC CONVERTER1
DatasheetQuarter Brick
34,536 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 8.33A 36V - 75V Input
VCB4824QBO-200WR3-N
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.33A |
| Power (Watts) | 200 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.40" H (57.9mm x 36.8mm x 10.1mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | CE, cURus, EN, UKCA, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
|
 |
 |

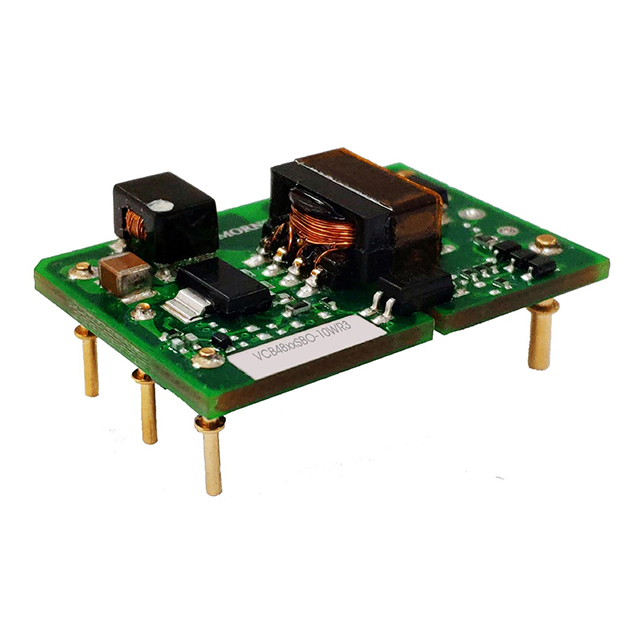

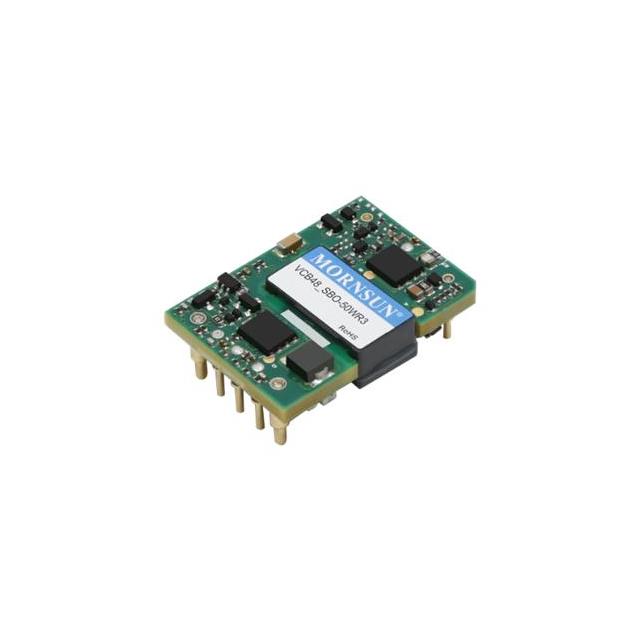

| Part Number | VCB4824QBO-200WR3 | VCB4824QBO-200WR3-N | VCB4803SBO-20WR3 | VCB4805EBO-100WFR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DC DC CONVERTER, 200W, 24V | ISOLATED MODULE DC DC CONVERTER1 | DC DC CONVERTER, 20W, 3V | DC DC CONVERTER, 100W, 5V, HEAT |
| Series | ||||
| Packaging | VCB48_QBO-200WR3 (200W) | VCB48_QBO-200WR3N (200W) | VCB48_SBO-20WR3 (20W) | VCB48_EBO-100WFR3 (100W) |
