Product CatalogPart Number
VCDG1113F-4BY3C-TR
Manufacturer
Stanley Electric CoDescription
LED GREEN 2SMD R/A
Datasheet
DatasheetPackage
2-SMD, No Lead
In Stock
33,202 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VCDG1113F-4BY3C-TR
VCDG1113F-4BY3C-TR

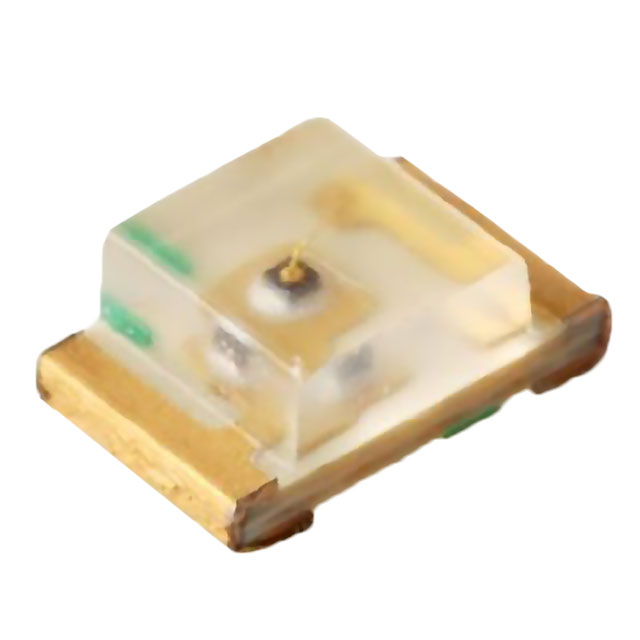

lmages are for reference only.Payment Methods
Delivery Services
Green 530nm LED Indication - Discrete 3V 2-SMD, No Lead
Quick Inquiry
VCDG1113F-4BY3C-TR
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Stanley Electric Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | - |
| Millicandela Rating | 100mcd |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 1.70mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 5mA |
| Viewing Angle | 170° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 530nm |
| Wavelength - Peak | 522nm |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 2.10mm L x 1.00mm W |
| Height (Max) | 0.70mm |
| Base Product Number | VCDG1113 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

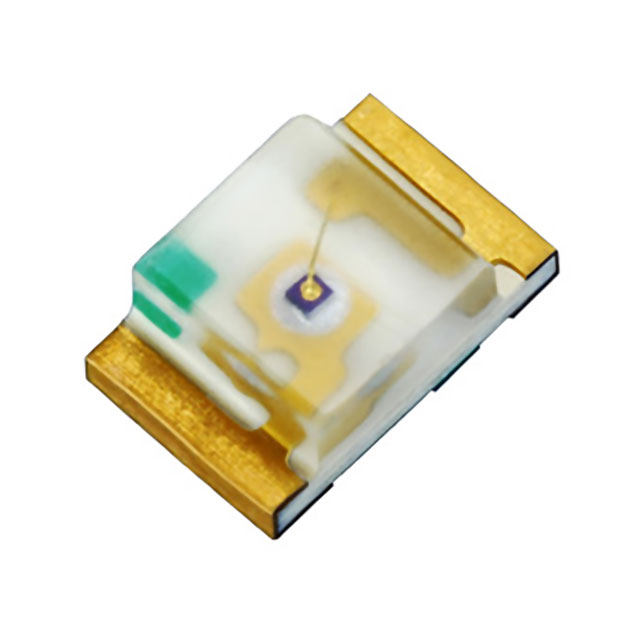

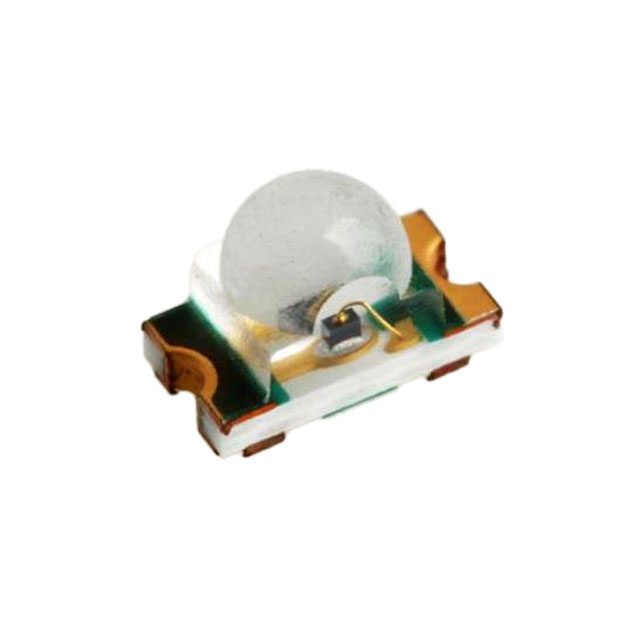

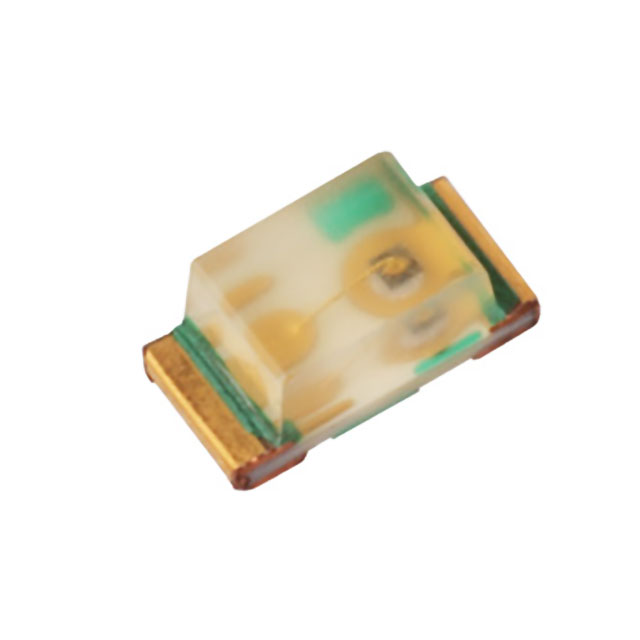

| Part Number | VCDB1104P-4B83B-TR | VCDB1111C-5AY3B-TR | VCDB1111C-6AX3B-TR | VCDB1112H-5AY3B-TR |
| Manufacturer | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED BLUE CLEAR 1608 SMD | LED BLUE DIFFUSED 1608 SMD | LED BLUE 1608 SMD | LED BLUE DIFFUSED 2125 SMD |
| Series | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
