VCF4-1002
lmages are for reference only.VCF4-1002
RELAY HSG 5POS WIRING HARNESS
Datasheet-
56,805 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Relay Housing Wiring Harness, Interlockable
VCF4-1002
| Category | Relays - Relay Sockets - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | VF4 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Housing |
| Number of Positions | 5 |
| Mounting Type | Wiring Harness, Interlockable |
| Termination Style | Quick Connect Terminals (Not Provided) |
| For Use With/Related Products | VF4-1 and VF4-4 Relays |
| Features | - |
| Base Product Number | VCF4 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

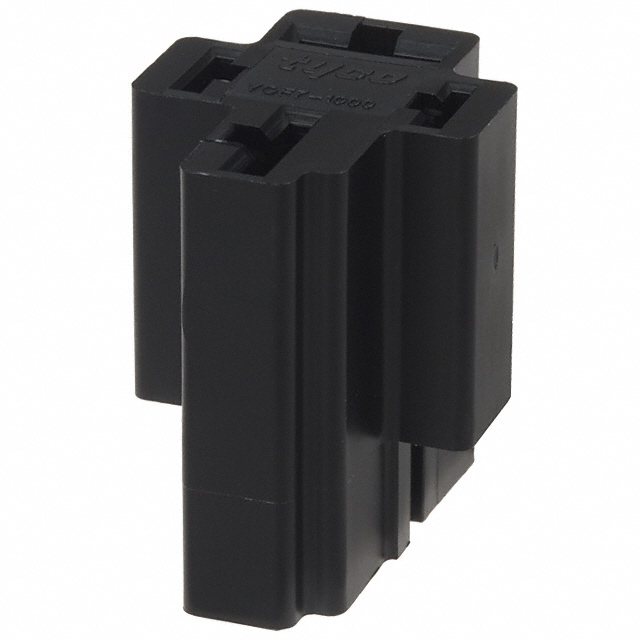

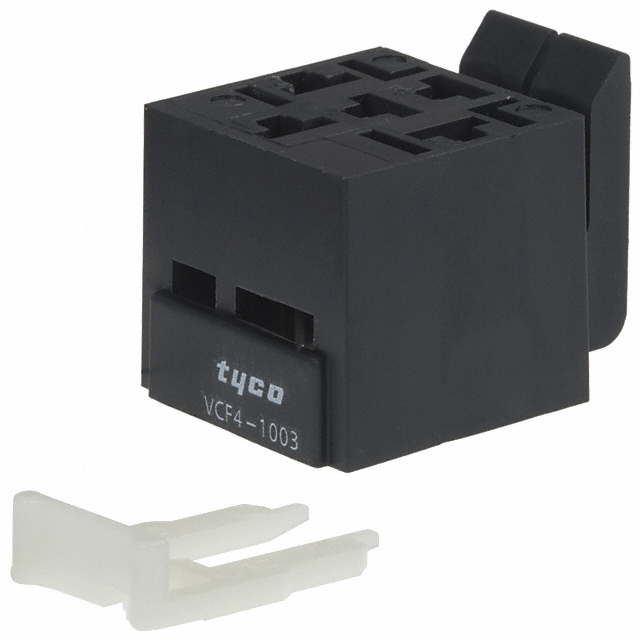

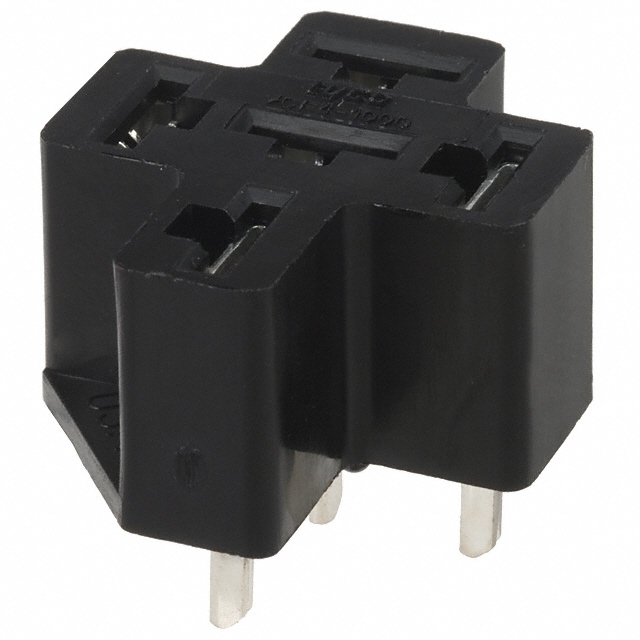

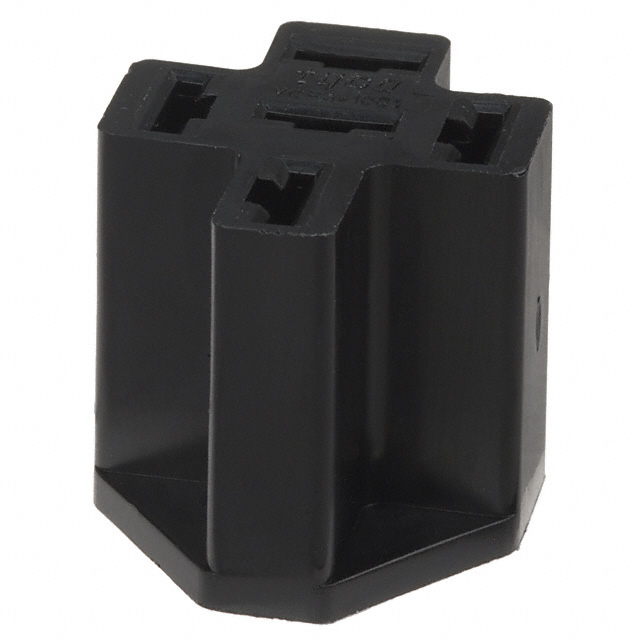

| Part Number | VCF4-1000 | VCF4-1001 | VCF4-1003 | VCF7-1000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY SOCKET 5 POS THROUGH HOLE | RELAY HSG 5 POS WIRING HARNESS | RELAY HSG 5POS WIRING HARNESS | RELAY HSG 4POS WIRING HARNESS |
| Series | VF4 | VF4 | VF4 | VF7 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
