VDMO10A0

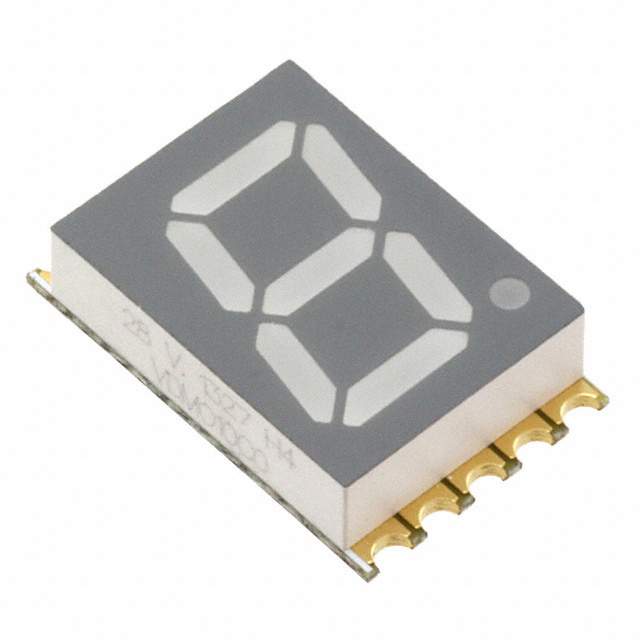

lmages are for reference only.VDMO10A0
DISPLAY 7SEG 0.39" SGL ORG 10SMD
Datasheet10-SMD, No Lead
97,325 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Orange 7-Segment 1 Character Common Anode 2V 20mA 0.591" H x 0.386" W x 0.124" D (15.00mm x 9.80mm x 3.15mm) 10-SMD, No Lead
VDMO10A0
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VDM.10A0 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.591" H x 0.386" W x 0.124" D (15.00mm x 9.80mm x 3.15mm) |
| Digit/Alpha Size | 0.39" (10.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Orange |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 0.65mcd |
| Wavelength - Peak | 605nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | VDMO10 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VDMO10A1 | VDMO10C0 | VDMG10A0 | VDMG10A1 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.39" SGL ORG 10SMD | DISPLAY 7SEG 0.39" SGL ORG 10SMD | DISPLAY 7SEG 0.39" SGL GRN 10SMD | DISPLAY 7SEG 0.39" SGL GRN 10SMD |
| Series | VDM.10A1 | VDM.10A0 | VDM.10A0 | VDM.10A1 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) |
