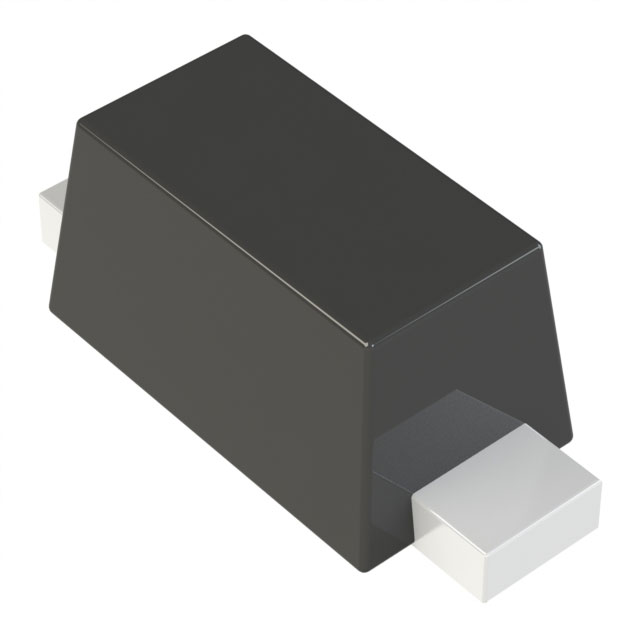

VESD05A1-02V-G-18
lmages are for reference only.VESD05A1-02V-G-18
TVS DIODE 5VWM 12VC SOD523
DatasheetSC-79, SOD-523
70,513 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 16A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
VESD05A1-02V-G-18
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 16A (8/20µs) |
| Power - Peak Pulse | 192W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 130pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Base Product Number | VESD05 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | VESD05A1-02V-G-08 | VESD05A1-02V-G3-08 | VESD05A1-02V-GS08 | VESD05A1-02VHG3-08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 12VC SOD523 | TVS DIODE 5VWM 12VC SOD523 | TVS DIODE 5VWM 12VC SOD523 | TVS DIODE 5VWM 12VC SOD523 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
