Product CatalogPart Number
VFB400W-Q24-S12
Manufacturer
CUI Inc.Description
DC DC CONVERTER 12V 400W
Datasheet
DatasheetPackage
16-DIP Module, Full Brick
In Stock
32,219 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VFB400W-Q24-S12
VFB400W-Q24-S12

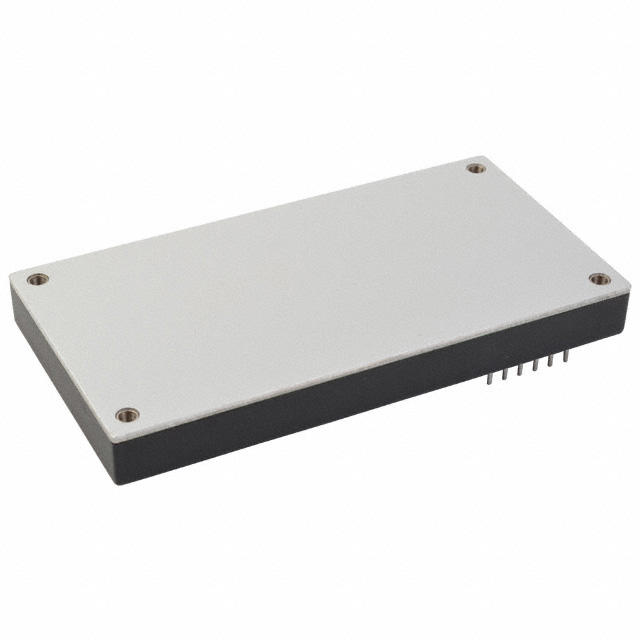

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 33.3A 9V - 36V Input
Quick Inquiry
VFB400W-Q24-S12
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | VFB400W (400W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 33.3A |
| Power (Watts) | 400 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, Full Brick |
| Size / Dimension | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | UL |
| Standard Number | 60950-1 |
| Base Product Number | VFB400W |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | VFB400W-Q24-S12N | VFB400W-Q24-S24 | VFB400W-Q24-S24N | VFB400W-Q24-S28 |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V 400W | DC DC CONVERTER 24V 400W | DC DC CONVERTER 24V 400W | DC DC CONVERTER 28V 400W |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Box | Box | Box | Box |
