VFHV1104P-4C62B-TR
lmages are for reference only.VFHV1104P-4C62B-TR
LED RED CLEAR 1608 SMD
Datasheet0603 (1608 Metric)
27,512 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red 616nm LED Indication - Discrete 1.9V 0603 (1608 Metric)
VFHV1104P-4C62B-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Stanley Electric Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 420mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 20mA |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 616nm |
| Wavelength - Peak | 624nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 1608 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 1.15mm |
| Base Product Number | VFHV1104 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

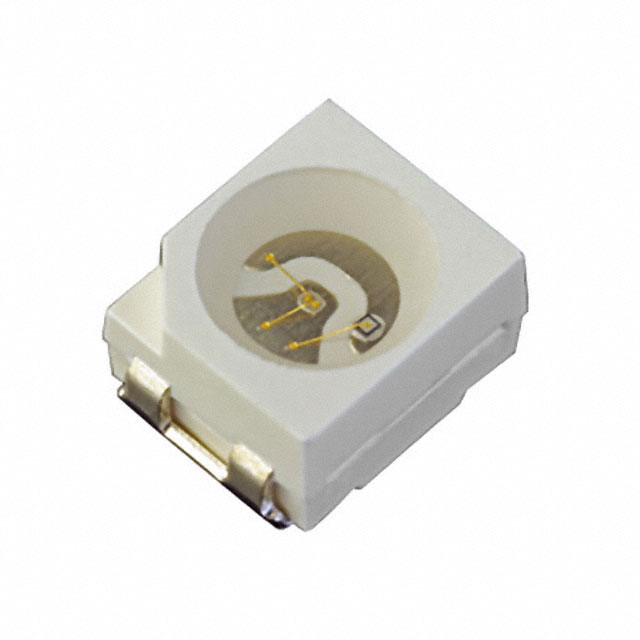

| Part Number | VFHV1104LS-TR | VFHA1104LS-TR | VFHA1104P-4C42C-TR | VFHA1111C-3BZ2C-TR |
| Manufacturer | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR 2PLCC SMD | LED ORANGE CLEAR 2PLCC SMD | LED ORANGE CLEAR 1608 SMD | LED ORANGE DIFFUSED 1608 |
| Series | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
