Product CatalogPart Number
VHV12-1.0K2000P
Manufacturer
Volgen + FurunoDescription
2W 10V INPUT HIGH VOLTAGE DC/DC
Datasheet
DatasheetPackage
7-SIP Module
In Stock
26,245 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VHV12-1.0K2000P
VHV12-1.0K2000P
lmages are for reference only.Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output 1000V 2mA 10.8V - 16.5V Input
Quick Inquiry
VHV12-1.0K2000P
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Volgen + Furuno |
| Series | VHV (2W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 1000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP |
| Operating Temperature | -10°C ~ 60°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module |
| Size / Dimension | 4.33" L x 0.47" W x 0.78" H (110.0mm x 12.0mm x 19.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | VHV12 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

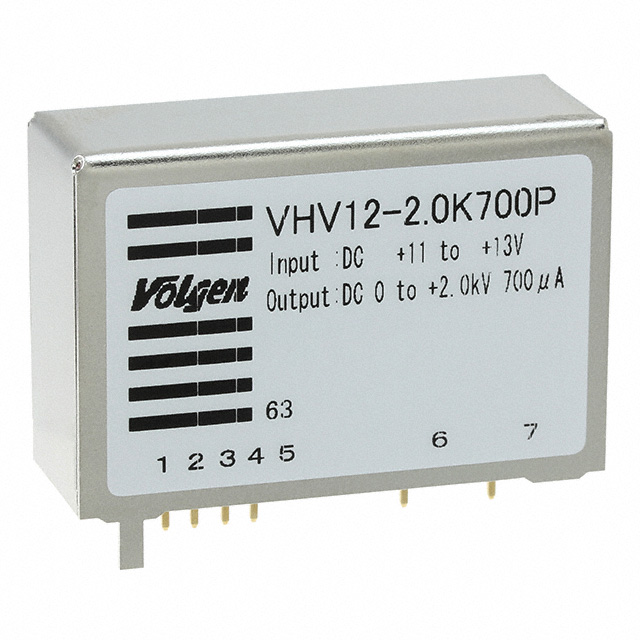

| Part Number | VHV12-1.0K1500P | VHV12-1.5K1000P | VHV12-2.0K1000P | VHV12-2.0K700P |
| Manufacturer | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 1000V 1.5W | DC DC CONVERTER 1500V 1.5W | DC DC CONVERTER 2000V 2W | DC DC CONVERTER 2000V 1.5W |
| Series | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno |
| Packaging | Bulk | Bulk | Bulk | Bulk |
