VLDK1235G
lmages are for reference only.VLDK1235G
LED AMBER CLEAR 2SMD
Datasheet2-SMD, Gull Wing
70,239 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Amber 616nm LED Indication - Discrete 2.25V 2-SMD, Gull Wing
VLDK1235G
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Color | Amber |
| Configuration | - |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 18000mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Current - Test | 50mA |
| Viewing Angle | 22° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 616nm |
| Wavelength - Peak | 622nm |
| Features | - |
| Package / Case | 2-SMD, Gull Wing |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 2.30mm L x 2.30mm W |
| Height (Max) | 3.12mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

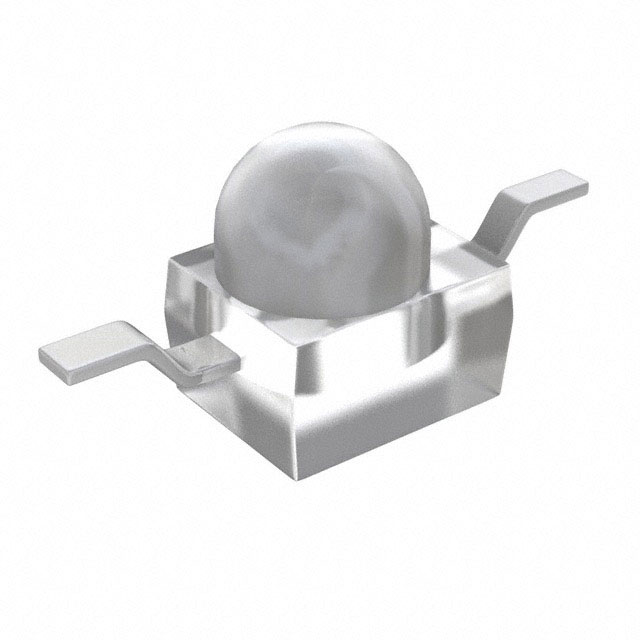

| Part Number | VLDK1235G-08 | VLDK1235R | VLDB1232G-08 | VLDB1232R-08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED AMBER CLEAR 2SMD | LED AMBER CLEAR 2SMD BOTTOM ENT | LED BLUE DOME LENS 2SMD | LED BLUE 2SMD BOTTOM ENT |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
