Product CatalogPart Number
VLF10045T-100M4R3
Manufacturer
TDK CorporationDescription
FIXED IND 10UH 4.3A 29 MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
17,133 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VLF10045T-100M4R3
VLF10045T-100M4R3
lmages are for reference only.Payment Methods
Delivery Services
10 µH Shielded Drum Core, Wirewound Inductor 4.3 A 29mOhm Max Nonstandard
Quick Inquiry
VLF10045T-100M4R3
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.3 A |
| Current - Saturation (Isat) | 4.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 29mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.382" W (10.00mm x 9.70mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|

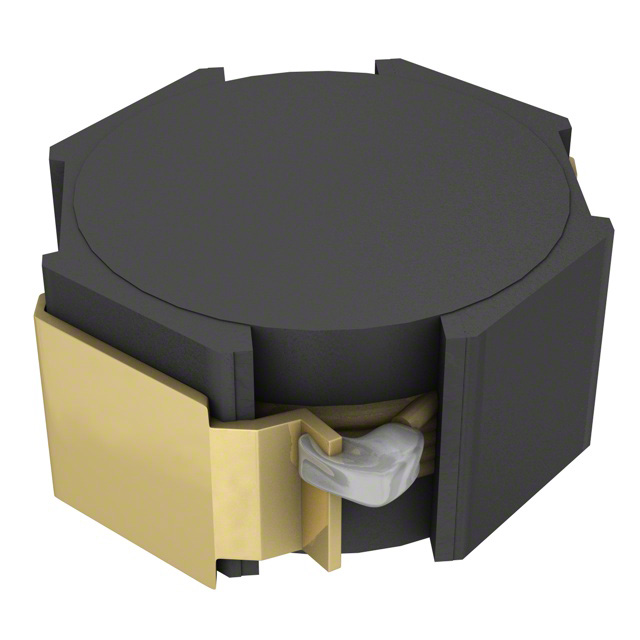

| Part Number | VLF10045T-101M1R3 | VLF10045T-101M1R3 | VLF10045T-150M3R5 | VLF10045T-151M1R1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ||||
| Description | FIXED IND 100UH 1.3A 250MOHM SMD | FIXED IND 100UH 1.3A 250MOHM SMD | FIXED IND 15UH 3.5A 43 MOHM SMD | FIXED IND 150UH 1.1A 352MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
VLF10040T-100M3R8
TDK Corporation
VLF10040T-100M3R8
TDK Corporation
VLF10040T-101M1R2
TDK Corporation
VLF10040T-150M3R1
TDK Corporation
VLF10040T-151MR99
TDK Corporation
VLF10040T-1R0N9R7
TDK Corporation
VLF10040T-1R5N8R9
TDK Corporation
VLF10040T-1R5N8R9
TDK Corporation
VLF10040T-220M2R5
TDK Corporation
VLF10040T-221MR81
TDK Corporation
VLF10040T-2R2N7R1
TDK Corporation
VLF10040T-330M2R1
TDK Corporation
VLF10040T-331MR67
TDK Corporation
VLF10040T-331MR67
TDK Corporation

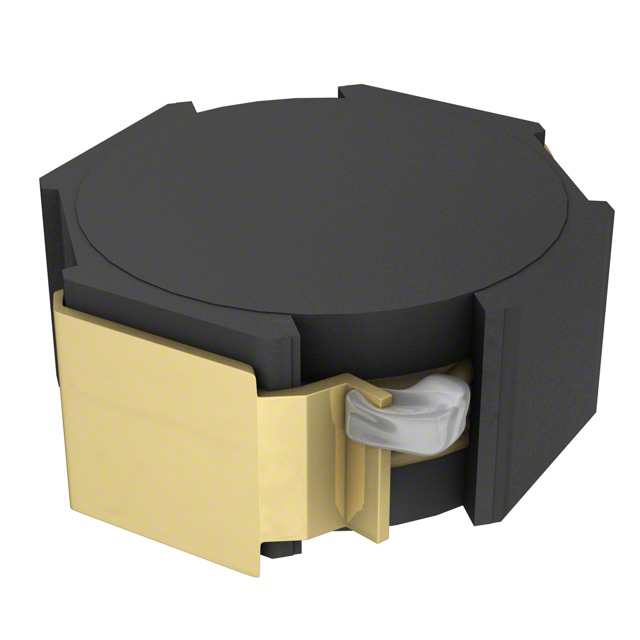

VLF10040T-3R3N6R2
