VLF302515MT-R47N-CA

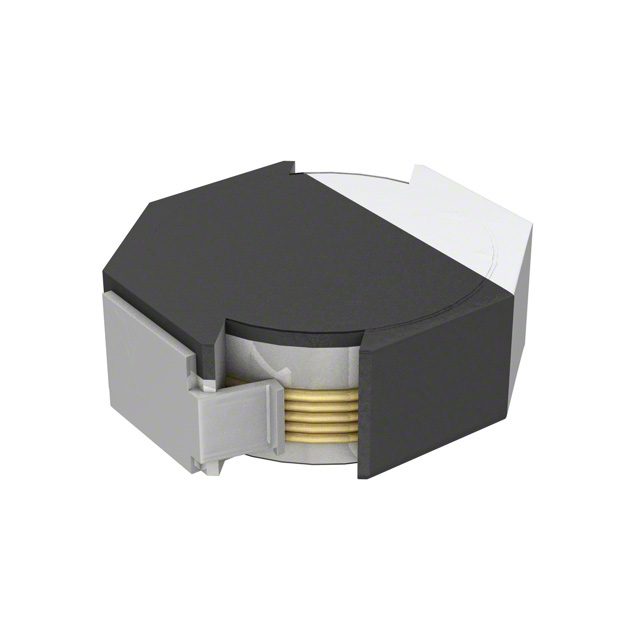

lmages are for reference only.VLF302515MT-R47N-CA
FIXED IND 470NH 4A 20 MOHM SMD
DatasheetNonstandard
66,946 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 nH Shielded Drum Core, Wirewound Inductor 4 A 20mOhm Max Nonstandard
VLF302515MT-R47N-CA
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLF-M-CA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4 A |
| Current - Saturation (Isat) | 3.18A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.098" W (3.00mm x 2.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | VLF302515MT-R47N | VLF302515MT-R47N | VLF302515MT-R47N | VLF302515MT-100M |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | FIXED IND 470NH 4A 20 MOHM SMD | FIXED IND 470NH 4A 20 MOHM SMD | FIXED IND 470NH 4A 20 MOHM SMD | FIXED IND 10UH 1.37A 180MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
