Product CatalogPart Number
VLF504012MT-100M
Manufacturer
TDK CorporationDescription
FIXED IND 10UH 1.3A 230 MOHM SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
62,091 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VLF504012MT-100M
VLF504012MT-100M

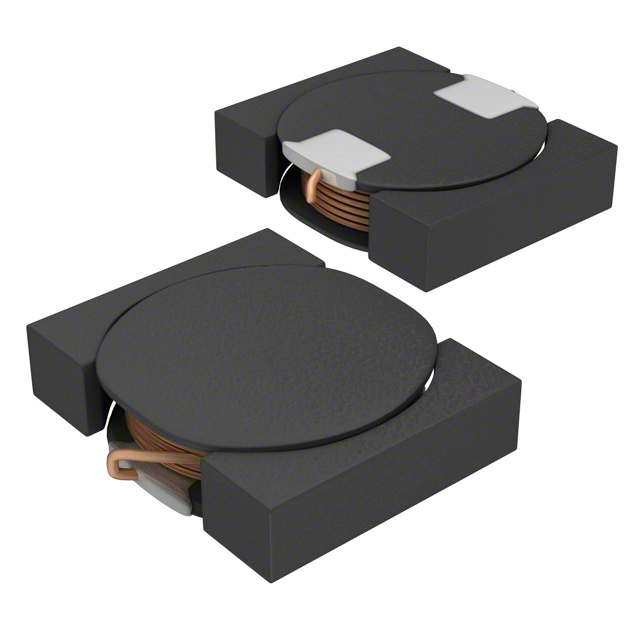

lmages are for reference only.Payment Methods
Delivery Services
10 µH Shielded Drum Core, Wirewound Inductor 1.3 A 230mOhm Max Nonstandard
Quick Inquiry
VLF504012MT-100M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLF-M |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1.18A |
| Shielding | Shielded |
| DC Resistance (DCR) | 230mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.157" W (5.00mm x 4.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | VLF504012MT-100M-CA | VLF504012MT-100M-CA | VLF504012MT-150M | VLF504012MT-150M-CA |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ||||
| Description | FIXED IND 10UH 1.3A 230 MOHM SMD | FIXED IND 10UH 1.3A 230 MOHM SMD | FIXED IND 15UH 1.08A 320MOHM SMD | FIXED IND 15UH 1.08A 320MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
