VLMK334BACB-GS08
lmages are for reference only.VLMK334BACB-GS08
LED AMBER 2PLCC SMD
Datasheet2-SMD, J-Lead
89,508 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Amber 616nm LED Indication - Discrete 2.25V 2-SMD, J-Lead
VLMK334BACB-GS08
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VLMK334 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Amber |
| Configuration | Standard |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 2800mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 616nm |
| Wavelength - Peak | 622nm |
| Features | - |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2-PLCC |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Height (Max) | 1.85mm |
| Base Product Number | VLMK334 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VLMK334BACB-GS18 | VLMK333U2AB-GS08 | VLMK333U2AB-GS18 | VLMK335U1V2-GS08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED AMBER 2PLCC SMD | LED AMBER 2PLCC SMD | LED AMBER 2PLCC SMD | LED AMBER 2PLCC SMD |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |

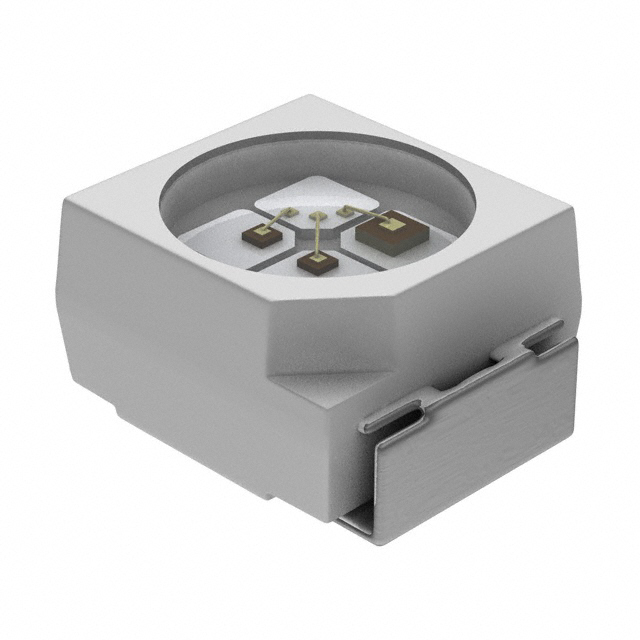

| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
