VLMRY3420-GS08
lmages are for reference only.VLMRY3420-GS08
LED AMBER/YLW CLEAR 4PLCC SMD
Datasheet4-SMD, J-Lead
81,195 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Amber, Yellow 617nm Amber, 588nm Yellow LED Indication - Discrete 2.1V Amber, 2.1V Yellow 4-SMD, J-Lead
VLMRY3420-GS08
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VLM.3 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Amber, Yellow |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 628mcd Amber, 840mcd Yellow |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Amber, 2.1V Yellow |
| Current - Test | 50mA Amber, 50mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 617nm Amber, 588nm Yellow |
| Wavelength - Peak | 624nm Amber, 590nm Yellow |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Height (Max) | 1.85mm |
| Base Product Number | VLMRY |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

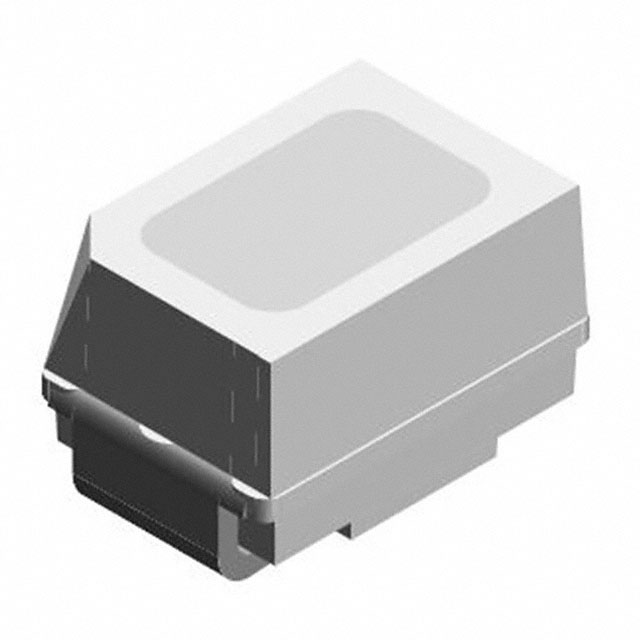

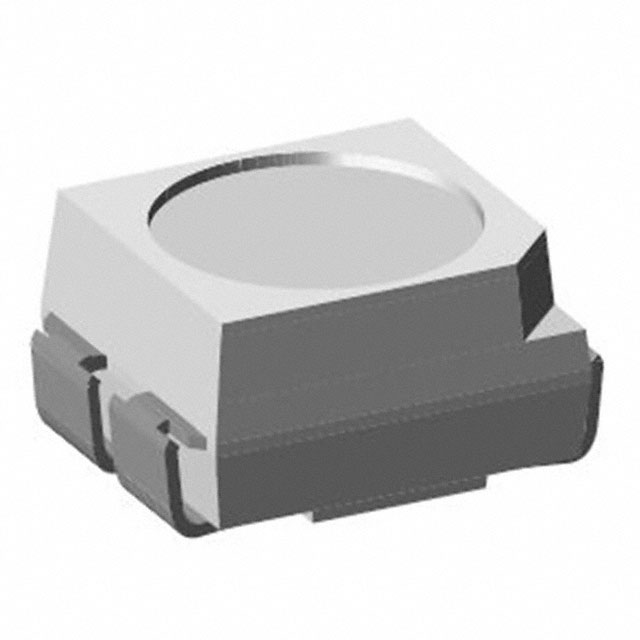

| Part Number | VLMRY3420-GS18 | VLMR233T2V2-GS08 | VLMR234ABCA-GS08 | VLMR235T2V1-GS08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED AMBER/YLW CLEAR 4PLCC SMD | LED RED SMD MINILED SMD | LED RED SMD MINILED SMD | LED RED SMD MINILED SMD |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
