VLMT3100-GS18
lmages are for reference only.VLMT3100-GS18
LED RED CLEAR 2PLCC SMD
Datasheet2-SMD, J-Lead
63,699 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red 619nm LED Indication - Discrete 2.2V 2-SMD, J-Lead
VLMT3100-GS18
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VLM.3 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 1.1mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 2mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 619nm |
| Wavelength - Peak | 635nm |
| Features | - |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2-PLCC |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Height (Max) | 1.85mm |
| Base Product Number | VLMT3100 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

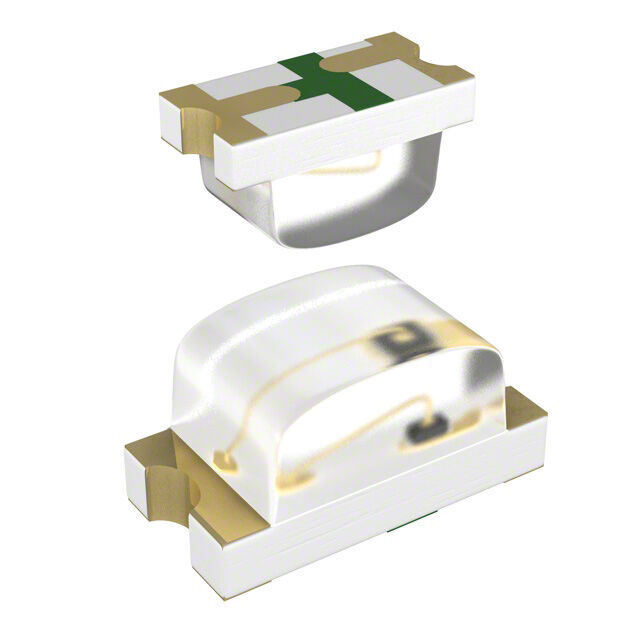

| Part Number | VLMT3100-GS08 | VLMA3100-GS08 | VLMA3100-GS18 | VLMB1300-GS08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR 2PLCC SMD | LED YELLOW CLEAR 2PLCC SMD | LED YELLOW CLEAR 2PLCC SMD | LED BLUE 0603 SMD |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
