VLS2012ET-6R8M-CA
lmages are for reference only.VLS2012ET-6R8M-CA
FIXED IND 6.8UH 690MA 498MOHM SM
DatasheetNonstandard
87,401 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 µH Shielded Drum Core, Wirewound Inductor 690 mA 498mOhm Max Nonstandard
VLS2012ET-6R8M-CA
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLS-E-CA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 690 mA |
| Current - Saturation (Isat) | 570mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 498mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

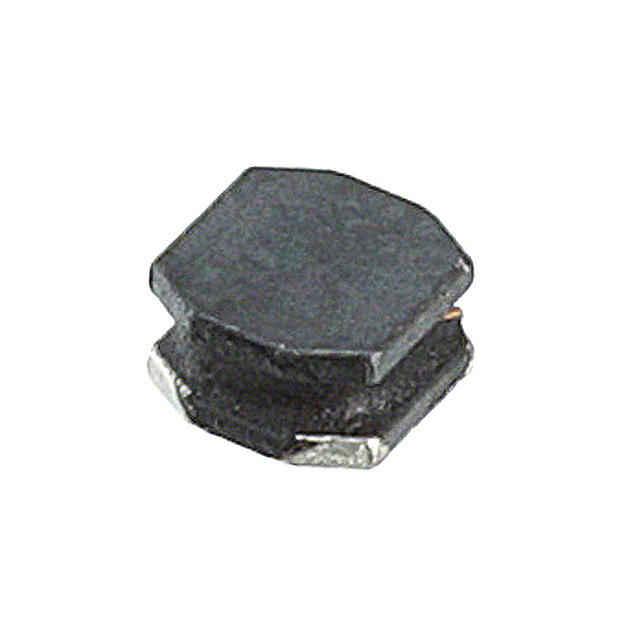

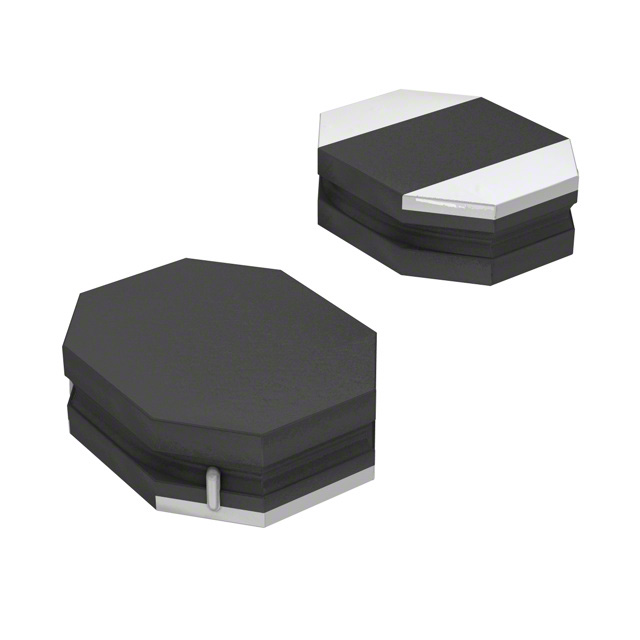

| Part Number | VLS2012ET-6R8M | VLS2012ET-100M | VLS2012ET-100M-CA | VLS2012ET-150M |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 570MA 498MOHM SM | FIXED IND 10UH 470MA 834MOHM SMD | FIXED IND 10UH 530MA 834MOHM SMD | FIXED IND 15UH 400MA 1.062OHM SM |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
