VLS201610CX-1R0M-1

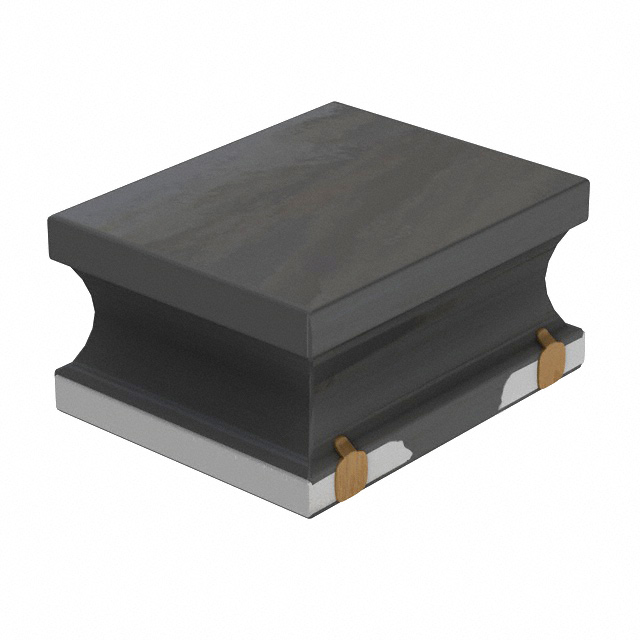

lmages are for reference only.VLS201610CX-1R0M-1
FIXED IND 1UH 2.14A 66 MOHM SMD
Datasheet0806 (2016 Metric)
85,198 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Drum Core, Wirewound Inductor 2.14 A 79mOhm Max 0806 (2016 Metric)
VLS201610CX-1R0M-1
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLS-CX-1 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.14 A |
| Current - Saturation (Isat) | 1.76A |
| Shielding | Shielded |
| DC Resistance (DCR) | 79mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 2016 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | VLS201610CX-1R0M | VLS201610CX-100M | VLS201610CX-100M | VLS201610CX-100M-1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 2.14A 79 MOHM SMD | FIXED IND 10UH 710MA 732MOHM SMD | FIXED IND 10UH 710MA 732MOHM SMD | FIXED IND 10UH 710MA 732MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
