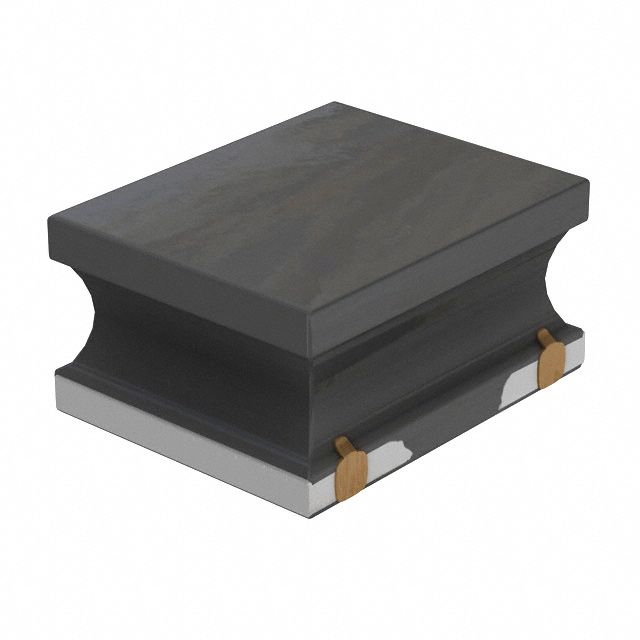

VLS201610HBX-1R0M
lmages are for reference only.VLS201610HBX-1R0M
FIXED IND 1UH 2.13A 72 MOHM SMD
Datasheet0806 (2016 Metric)
30,552 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Drum Core, Wirewound Inductor 2.13 A 72mOhm Max 0806 (2016 Metric)
VLS201610HBX-1R0M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLS-HBX |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.13 A |
| Current - Saturation (Isat) | 2.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 72mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 2016 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |  | |  |
| Part Number | VLS201610HBX-1R0M-1 | VLS201610HBX-100M-1 | VLS201610HBX-1R5M | VLS201610HBX-1R5M-1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 2.13A 72 MOHM SMD | FIXED IND 10UH 650MA 768MOHM SMD | FIXED IND 1.5UH 1.63A 116MOHM SM | FIXED IND 1.5UH 1.63A 116MOHM SM |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
