Product CatalogPart Number
VLS5045EX-3R3N-H
Manufacturer
TDK CorporationDescription
FIXED IND 3.3UH 4.2A 35.1MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
30,476 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VLS5045EX-3R3N-H
VLS5045EX-3R3N-H
lmages are for reference only.Payment Methods
Delivery Services
3.3 µH Shielded Drum Core, Wirewound Inductor 4.2 A 35.1mOhm Max Nonstandard
Quick Inquiry
VLS5045EX-3R3N-H
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLS-EX-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.2 A |
| Current - Saturation (Isat) | 5.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 35.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | VLS5045EX-3R3N | VLS5045EX-3R3N-CA | VLS5045EX-100M | VLS5045EX-100M-CA |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.3UH 4.2A 35.1MOHM SM | FIXED IND 3.3UH 4.2A 35.1MOHM SM | FIXED IND 10UH 2.5A 79.3MOHM SMD | FIXED IND 10UH 2.5A 79.3MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
VLS5030EX-100M-D
TDK Corporation
VLS5030EX-101M-D
TDK Corporation
VLS5030EX-150M-D
TDK Corporation
VLS5030EX-151M-D
TDK Corporation

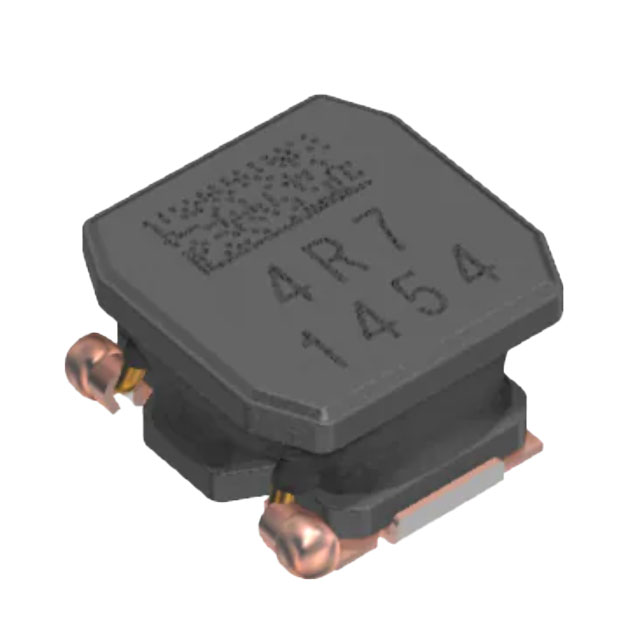

VLS5030EX-1R0N-D
